Quality SK135SRLC-1E SK135SR-1E Hydraulic Boom Cylinder for Kobelco Excavator Spare Parts YY01V00002F1 Aftermarket High Quality factory

SK135SRLC-1E SK135SR-1E Hydraulic Boom Cylinder for Kobelco Excavator Spare Parts YY01V00002F1 Aftermarket High Quality

Name: SK135SRLC-1E SK135SR-1E Hydraulic Boom Cylinder for Kobelco Excavator Spare Parts YY01V00002F1 Aftermarket High Quality
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK135SRLC-1E SK135SR-1E
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Certification:CE

Model Number:SK135SRLC-1E SK135SR-1E

Minimum Order Quantity:1 PCS

Price:Negotiation

Payment Terms:L/C,D/A,D/P,T/T,TRADE ASSURANCE,WEST UNION,PAYPAL

Supply Ability:100 PCS / Months

Product Details

Model: SK135SRLC-1E SK135SR-1E

Part Number: YY01V00002F1

Part Name: Hydraulic Boom Cylinder

Application: Excavator

Condition: New

Quality: Aftermarket High Quality

Warranty: 1 Year

Shipment: DHL FEDEX TNT EMS UPS / Ses / Air

Emission Standards: Stage V

Product Description

SK135SR-1E / SK135SRLC-1E Hydraulic Boom Cylinder | Kobelco Excavator Spare Parts YY01V00002F1 Premium Aftermarket Grade

1. Product Overview & Equipment Compatibility

YY01V00002F1 hydraulic boom cylinder is a core lifting component for Kobelco SK135SR-1E and SK135SRLC-1E excavators. Produced to full OEM standards, it features identical installation sizes and hydraulic parameters for direct installation without modification. It delivers stable performance for general construction, earthmoving and daily engineering operations.

Quick Product Parameter Sheet

Parameter	Product & Logistics Details
Application	Medium excavator hydraulic system, general construction works
Part Name	Hydraulic Boom Cylinder
Compatible Model	Kobelco SK135SR-1E, SK135SRLC-1E
Part Number	YY01V00002F1
Quality Grade	High-quality aftermarket
Certification	ISO9001, CE certified
Warranty	12-month comprehensive quality warranty
Minimum Order Quantity	1 piece acceptable
Delivery Time	3-7 working days via air express
Shipping Options	Express, land transport, sea freight, railway delivery
Payment Method	T/T, Trade Assurance, PayPal

2. Technical Specifications & Material Advantages

SK135SRLC-1E SK135SR-1E Hydraulic Boom Cylinder for Kobelco Excavator Spare Parts YY01V00002F1 Aftermarket High Quality 0

#	Part No.	Description	Qty
A11	ZW26X10000	LOCK WASHER; ID 10 x OD 18 x Th 2.5mm	6
A8	ZS18C10040	SCREW,Hex, M10 x 40mm; M10x1.50x40mm	1
B8	ZS28C10030	SCREW,Hex Socket Head, M10 x 30mm; M10x1.50x30mm	16
C8	ZS18C10045	SCREW,Hex, M10 x 45mm; M10x1.50x45mm	1
A9	ZS18C10045	SCREW,Hex, M10 x 45mm; M10x1.50x45mm	5
B9	ZW26X10000	LOCK WASHER; ID 10 x OD 18 x Th 2.5mm	2
C9	ZS28C10035	SCREW,Hex Socket Head, M10 x 35mm; Screw -- M10x1.50x35mm	4
A10	ZS18C12045	SCREW,Hex, M12 x 45mm; M12x1.75x45mm	2
C10	ZG91S02000	LUBE NIPPLE,1/8" NPT x 1/8" NPT; 1/8" PT -- Straight	1
B10	ZH22Z04000	HYD CONNECTOR; 1/4"PTx1/4"PFx37mm Long	2
B11	ZG91S02000	LUBE NIPPLE,1/8" NPT x 1/8" NPT; 1/8" PT -- Straight	2
C11	ZD12A01600	O-RING; ID 15.60 ± 0.12 x OD 19.16mm	1
B7	ZS18C10045	SCREW,Hex, M10 x 45mm; M10x1.50x45mm	2
A12	ZW26X12000	LOCK WASHER; ID 12 x OD 21 x Th 3.0mm	2
C12	ZD12P02600	O-RING; ID 25.70 ± 0.26 x OD 32mm	2
B12	ZD12A01600	O-RING; ID 15.60 ± 0.12 x OD 19.16mm	4
A13	ZD12A01600	O-RING; ID 15.60 ± 0.12 x OD 19.16mm	6
C13	ZW26X10000	LOCK WASHER; ID 10 x OD 18 x Th 2.5mm	5
B13	ZD12P02600	O-RING; ID 25.70 ± 0.26 x OD 32mm	4
A14	ZD12A01800	O-RING,1.78mm Thk x 18.77mm ID, Cl 6; ID 18.77 ± 0.12 x OD 22.33mm	2
.	YY42H00004F1	LINE; HYD LINES, CYLINDER	1
.	YY01V00003F2	CYLINDER ASSY.; HYD LINES, BOOM	1
.	YY42H00003F1	LINE; HYD LINES, CYLINDER	1
B4	YY42H01012P1	TUBE	1
C1	YY42H01013P1	TUBE	1
A1	YY42H01001P1	RIGID TUBE; TUBE	1
B2	YY42H01010P1	TUBE	1
A2	YY42H01002P1	RIGID TUBE; TUBE	1
C2	LP02B01011D2	HOSE	1
C3	ZX20H10080	HOSE; 800mm Long (31-1/2 in)	1
B3	YY42H01011P1	TUBE	1
A3	YY42H01003P1	RIGID TUBE; TUBE	1
B1	YY42H01009P1	TUBE	1
C4	YW43H01049P1	CLAMP	1
A4	YY42H01004P1	RIGID TUBE; TUBE	1
B5	ZX20H10074	HOSE; 740mm Long (29-1/8 in)	4
A5	ZC26X22011	CLAMP; Single Line -- 38x29x65mm Long	4
C5	ZE13X12000	CLAMP; Half -- (Incls. Capscrew & Lockwasher)	2
A6	2432T2244	CLAMP; Double -- 102x32x12mm (Ø23xØ23mm)	2
B6	2432T2244	CLAMP; Double -- 102x32x12mm (Ø23xØ23mm)	2
C6	ZH22Z04000	HYD CONNECTOR; 1/4"PTx1/4"PFx37mm Long	1
C7	ZS28C10030	SCREW,Hex Socket Head, M10 x 30mm; M10x1.50x30mm	4
A7	2432T2242	CLAMP; Double -- 106x38x12mm (Ø23xØ29mm)	2
01	YY01V00001F1	CYLINDER ASSY.; CYLINDER ASSY, BOOM (L.H), Remarks: SEE (C.P.M)	1
02	YY01V00002F1	CYLINDER ASSY.; CYLINDER ASSY, BOOM (R.H), Remarks: SEE (C.P.M)	1
03	YY01V00003F1	CYLINDER ASSY.; CYLINDER ASSY, ARM, Remarks: SEE (C.P.M)	1

The cylinder body is made of high-tensile seamless alloy steel with strong compression and anti-deformation capacity. The piston rod undergoes induction hardening and hard chrome plating to resist wear, corrosion and impact. High-performance sealing parts effectively prevent oil leakage, ensuring stable operation within -20℃ to +85℃. All products pass leakage, fatigue and dimensional tests before delivery.

Engineering Attribute	Verified Technical Data
Product Type	Kobelco SK135SR-1E / SK135SRLC-1E Hydraulic Boom Cylinder
OEM Reference Number	YY01V00002F1
Main Manufacturing Material	High strength seamless alloy steel
Surface Treatment of Piston Rod	Induction hardening + hard chrome plating
Sealing Material	Wear-resistant high pressure polyurethane seal
Applicable Working Temperature	-20℃ ~ +85℃
Factory Inspection Items	Leakage test, fatigue test, dimension measurement

3. Competitive Strength of Our Boom Cylinder

This aftermarket cylinder offers OEM-matched performance at a competitive price. Optimized materials and structure adapt well to medium-load working conditions for longer service life. We accept single-piece orders and keep ample stock for fast delivery to reduce equipment downtime. The 12-month warranty covers non-artificial defects, with free replacement parts and professional technical support provided.

4. Brand Strength & Global Supply Service

Established in 2013, Belparts specializes in excavator hydraulic spare parts. We supply reliable aftermarket and OEM-matched components for mainstream brands including Kobelco, Hyundai, Komatsu

With standardized production and strict quality control, our products enjoy wide recognition across the globe. We export goods to over 150 countries and regions, and provide complete cross-border logistics to meet various shipping requirements.

5. Frequently Asked Questions

Q1: Can this cylinder fit Kobelco SK135SR-1E and SK135SRLC-1E perfectly?

A: This part is manufactured strictly according to OEM specifications for the two models. You may send the machine serial number or photos of the old cylinder, and our technical team will double-check compatibility for seamless direct installation.

Q2: What problems are covered under the 12-month warranty?

A: The warranty covers non-man-made faults such as oil leakage, seal damage, cylinder distortion and insufficient working pressure. Free replacement parts and long-term technical consultation are available.

Q3: What advantages does this product have over common spare parts?

A: Reinforced materials and optimized structure bring better pressure resistance and durability, suitable for various construction scenarios.

Q4: How is the product packaged and how long will delivery take?

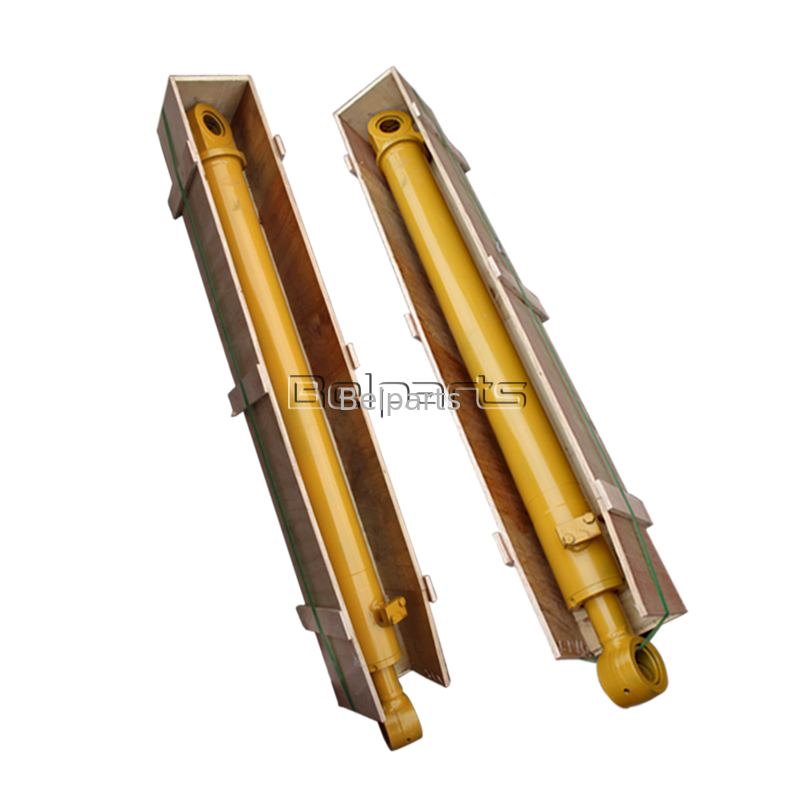

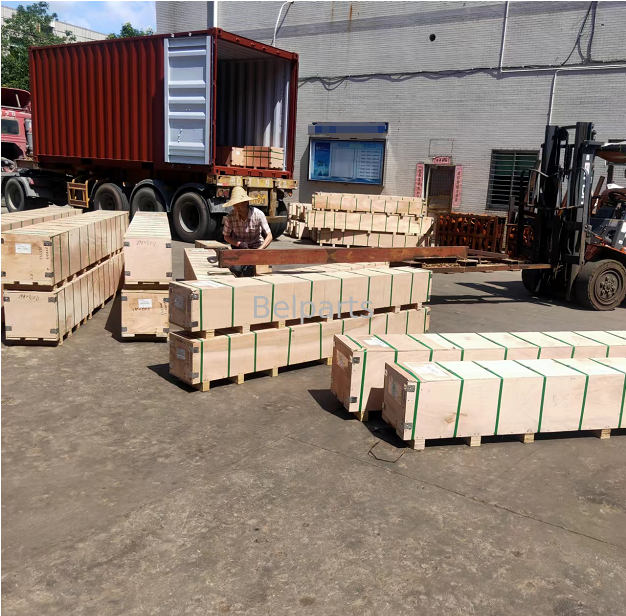

A: All cylinders are coated with anti-rust oil and sealed, then packed in sturdy export wooden cases. Air delivery takes 3 to 7 days, while sea freight takes 30 to 45 days for bulk orders.

Q5: What safe payment methods can customers choose?

A: We support multiple secure cross-border payments including T/T bank transfer, Trade Assurance and PayPal to fully protect transaction safety.
