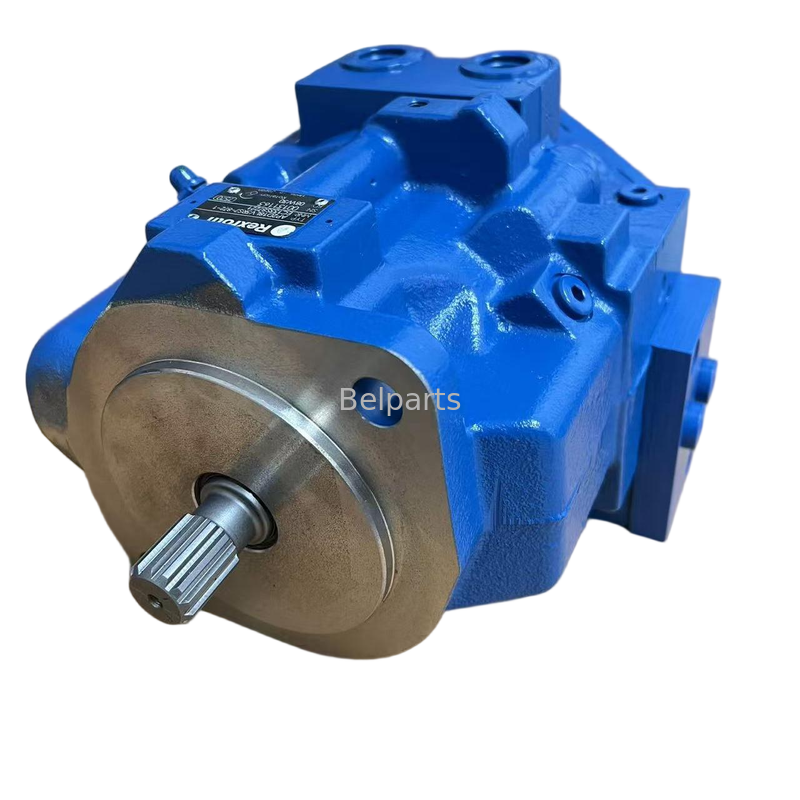

Product Detail Page: AP2D12 Main Hydraulic Pump PM10V00017F1 for New Holland E27 Series Mini Excavator
AP2D12 hydraulic pump, PM10V00017F1 pump, New Holland E27 main hydraulic pump replacement, E27SR mini excavator hydraulic spare parts, New Holland E27B hydraulic pump aftermarket part
1. Product Description (Table Layout for Google Crawling & Featured Snippet)
| Item |
Detailed Info |
| Product Model |
AP2D12 Main Hydraulic Pump |
| OEM Number |
PM10V00017F1 |
| Applicable Machine |
New Holland E27, E27SR, E27B, E27BSR, EH27.B, E27.2SR (2.7-ton mini excavator) |
| Quality Options |
Genuine Equivalent / Premium Aftermarket |
| Core Usage |
Central hydraulic power for digging, traveling and swing movements |
| Factory Inspection |
Full hydraulic pressure testing finished before delivery |
| Warranty |
12-month warranty with free replacement for quality defects |
| MOQ |
1 piece (sample & bulk order available) |
| Lead Time |
In-stock items ship within 1-3 working days |
| Shipping Period |
Air/Express:3-7 days; Sea freight:30-45 days |
| Target Customer |
Global excavator repair shops, fleet owners & spare parts wholesalers |
2. Key Features & Specifications
Core Key Features
- Standard AP2D12 swash-plate variable displacement axial piston structure, consistent with original New Holland factory design;
- Cylinder block and piston shoes adopt quenched alloy steel + copper bimetallic composite for superior wear resistance and long service lifespan;
- Imported rubber sealing assemblies resist high temperature and hydraulic oil corrosion to avoid internal & external oil leakage;
- Optimized internal flow passage lowers hydraulic power loss and operational heat generation to cut down mini excavator fuel consumption;
- Low operational vibration and running noise, stable flow output under fluctuating working loads of digging and hauling.
Exact Technical Specifications (AP2D12 Factory Standard Data)
| Specification Item |
Parameter Data |
| Nominal Displacement |
12 cc/rev |
| Rated Working Pressure |
210 Bar (21 MPa) |
| Instant Peak Pressure |
260 Bar (26 MPa) |
| Maximum Allowable Input Rotational Speed |
3200 RPM |
| Input Shaft Diameter |
25 mm |
| Net Product Weight |
12.8 KG |
| Inlet Hydraulic Port |
G1 1/4 Thread |
| Outlet Hydraulic Port |
G7/8 Thread |
| Applicable Hydraulic Oil Grade |
ISO VG32 ~ VG68 anti-wear hydraulic oil |
| Working Ambient Temperature Range |
-20℃ ~ +60℃ |
3. Compatibility Information
Compatible Excavator Models
New Holland E27, E27SR, E27B, E27BSR, EH27.B, E27.2SR (All 2.7-ton mini crawler excavator variants)
Cross OEM Part Number
- Main OEM PN: PM10V00017F1
- Alternative interchange part codes: AP2D12-12, AP2D12-HV
Installation Remark
Direct bolt-on replacement without any frame modification or pipeline adjustment; fully interchangeable with original factory-mounted hydraulic pump for listed New Holland mini diggers. No custom machining required during field installation.
4. Technical Explanation (Shortened)
Built on swash plate axial piston principle, this AP2D12 pump adjusts displacement via pilot-controlled swash plate angle to match flow and pressure for varying working conditions. Its anti-cavitation internal design prevents component damage at cold start, improving engine-hydraulic matching efficiency and reducing overall fuel consumption of E27 series mini excavators.
5. Why Choose Us (Shortened Belparts Advantages)
- Founded in 2013 with over 10 years focusing on excavator hydraulic core parts, we offer professional part matching guidance.
- Dual-quality options (genuine & aftermarket) plus full-range spare parts covering mainstream brands for one-stop procurement.
- Self-owned Belparts brand exported to over 150 countries, with regular attendance at global construction machinery exhibitions.
- In-stock goods at our Guangzhou warehouse, CE-certified products with 1-year free-replacement warranty and flexible air/sea/express logistics (3–7 days air, 30–45 days sea).
6. Frequently Asked Questions (FAQ for Google Featured Snippet SEO)
Q1: Can this PM10V00017F1 AP2D12 pump directly replace the original pump on my New Holland E27SR?
A: Yes, our pump strictly copies original installation dimensions and hydraulic parameters, direct bolt-on installation with zero modification for all listed E27 series New Holland mini excavator variants.
Q2: What two quality grades are available for this hydraulic pump?
A: We supply genuine-spec equivalent pump (same raw material and production craft as OEM original) and high-performance aftermarket pump with cost advantages for regular repair projects.
Q3: How long is your official product warranty policy?
A: Every Belparts hydraulic pump enjoys 1 full-year warranty; we offer free spare part replacement if any manufacturing quality fault occurs within the warranty period.
Q4: What shipping options can I select for bulk orders?
A: We support international express, air, sea and land shipment. Air/express:3–7 days delivery; sea freight:30–45 days transit based on destination country.
Q5: Do you keep this AP2D12 pump in stock for quick dispatch?
A: We maintain regular spot stock in our Guangzhou warehouse for PM10V00017F1 pumps, supporting small sample order and large bulk wholesale fast shipment.
| # |
Part No. |
Description |
Qty |
| . |
PM10V00017F1 |
HYDRAULIC PUMP; ASSY |
1 |
| 1 |
PM10V01001F1 |
SHAFT ASSY. |
1 |
| 2 |
PM10V01007F1 |
PLATE ASSY. |
1 |
| 3 |
PM10V01003F1 |
ROTOR ASSY. |
1 |
| 4 |
PM10V01008F1 |
COVER ASSY |
1 |
| 7 |
PM10V00020F1 |
GEARBOX ASSY; PUMP |
1 |
| 8 |
PM10V01010F1 |
HOUSING ASSY. |
1 |
| 9 |
PX10V00015F1 |
PUMP; ASSY |
1 |
| 11 |
EN10V00005S030 |
IDENTITY PLATE |
1 |
| 17 |
PY10V00007S017 |
BREATHER; AIR |
1 |
| 2441U720S49 |
PLUG |
1 |
| 20 |
PM10V00017S020 |
SPRING |
1 |
| 21 |
PM10V00017S021 |
SPRING |
1 |
| 101 |
PM10V01005S001 |
SPRING SEAT |
1 |
| 102 |
PM10V01005S002 |
SPRING SEAT |
1 |
| 103 |
PM10V01005S003 |
NUT |
1 |
| 104 |
ZS83C08025 |
SCREW; Set -- M08x1.25x25mm |
1 |
| 107 |
PM10V01005S007 |
GUIDE |
1 |
| 134 |
PW10V00001S048 |
SHIM,1.0mm Thk; (1.0) |
2 |
| 144 |
PW10V00001S047 |
SHIM,0.5mm Thk; (0.5) |
2 |
| 154 |
PM10V01005S054 |
SHIM,0.3mm Thk; (0.3) |
2 |
