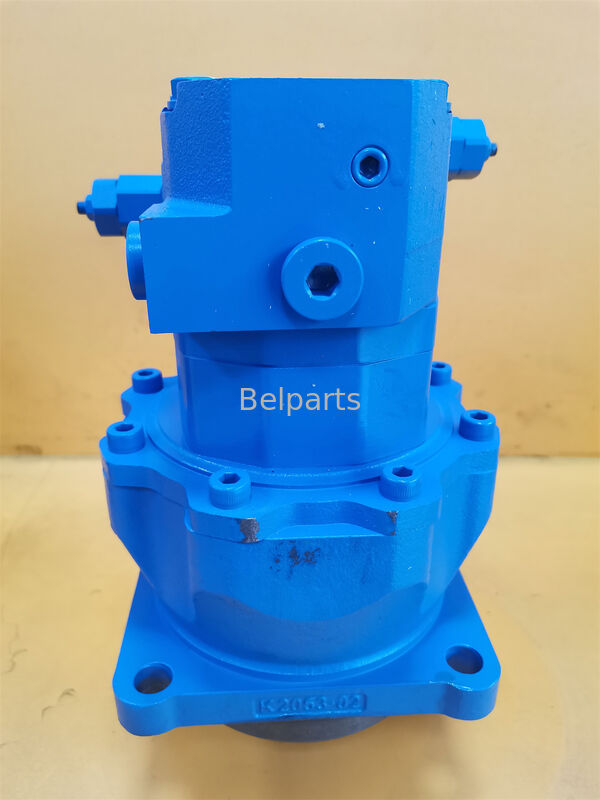

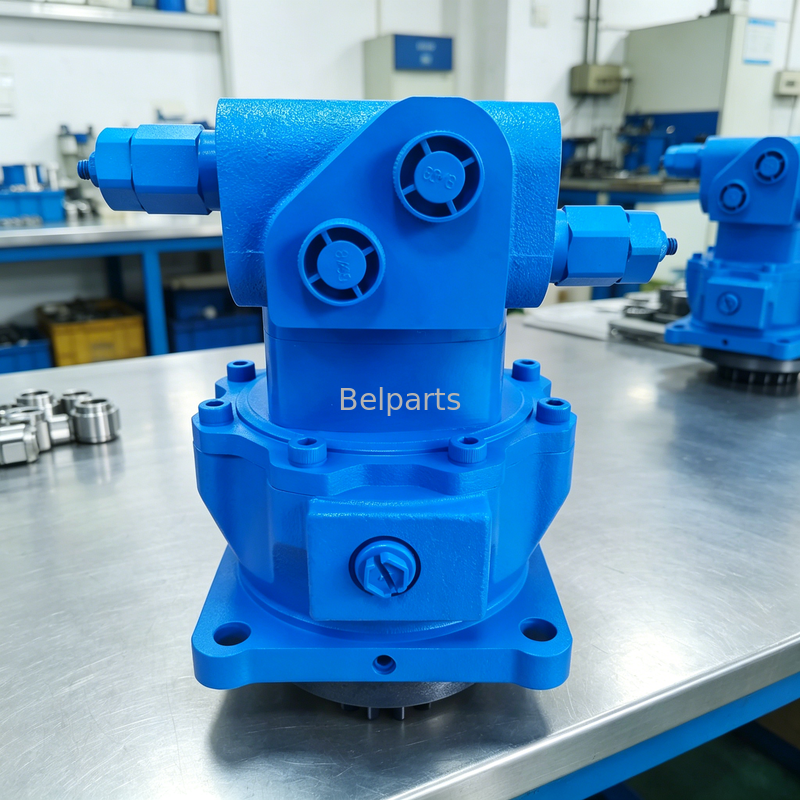

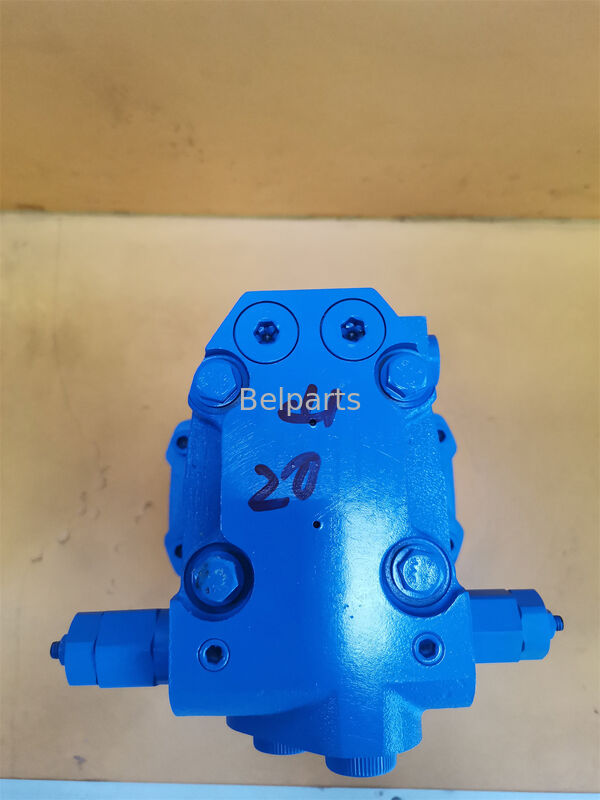

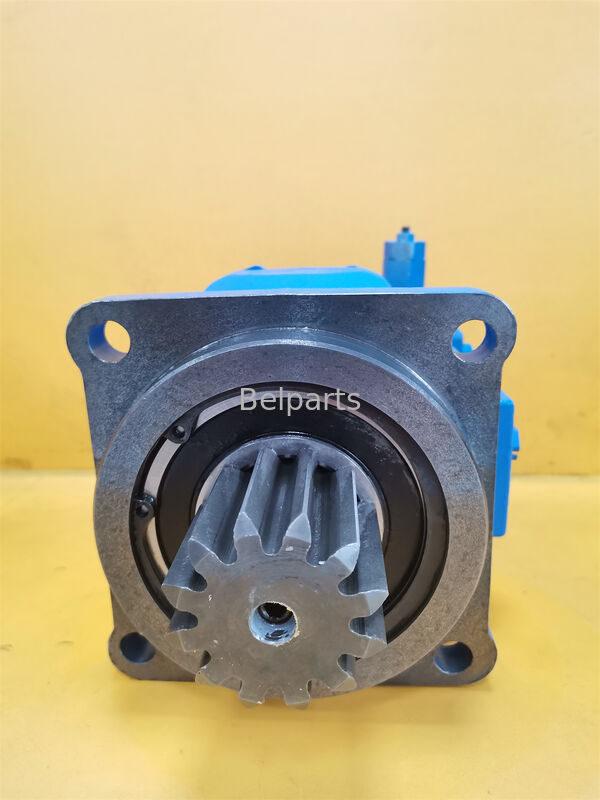

Name: Bobcat E17 E19 E20 E17Z E20Z Swing Motor Reducer 7024418 7024419 For Mini Excavator
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: E17 E19 E20 E17Z E20Z
Price: 475.00 USD
Availability: InStock

Home > Products > Swing Motor Assy >

Bobcat E17 E19 E20 E17Z E20Z Swing Motor Reducer 7024418 7024419 For Mini Excavator

Place of Origin:

USA

Brand Name:

Bobcat

Certification:

Model Number:

E17 E19 E20 E17Z E20Z

Request A Quote

Product Details

Part Name:

Swing Motor Reducer Device

Type:

E17 E19 E20 E17Z E20Z

Part Number:

7024418 7024419

Application:

Mini Excavator

Quality:

OEM

Warranty:

12 Months

Condition:

New

Shipment:

Sea / Air / Express DHL FEDEX UPS

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

Negotiation

Packaging Details

Wooden Case Packing

Delivery Time

3-7 Day

Payment Terms

L/C,D/A,D/P,T/T,Alibaba TRADE ASSURANCE,Western Union,PAYPAL

Supply Ability

100 PCS / Months

JCB 85Z-1 86C-1 90Z-1 100C-1 Swing Motor For Excavator Spare Parts 333/W4439 NACHI PCR-5B-30A-FGP-9407A Rotary Motor Reducer Device

Get Best Price

Hydraulic Swing Motor For PC1600-1 PC1600SP-1 Komatsu Excavator Part 706-77-01144 706-77-01143 706-77-01142 706-77-01141 Slew Motor Device

Get Best Price

Hydraulic Swing Motor For PC1000-1 PC1000LC-1 PC1000SE-1 PC1000SP-1 Komatsu Excavator Part 706-77-01131 706-77-01130 Slew Motor Device

Get Best Price

Hydraulic Swing Motor For PC1250-11 Komatsu Excavator Part 706-7K-01240 Slew Motor Device

Get Best Price

+86 19924616345

ron@belparts-china.com

86-020-32384870

Contact Now

Product Description

Product Detail Page: Bobcat E17 E19 E20 E17Z E20Z Swing Motor Reducer (7024418 / 7024419) – OEM New

1. Product Description

Item	Detailed Info
Product Name	Swing Motor Reducer / Slew Drive Assembly
OEM Numbers	7024418 (E19/E20/E20Z)；7024419 (E17/E17Z)
Compatible Models	Bobcat E17, E17Z, E19, E19E, E20, E20Z (1.7–2 ton mini excavator)
Condition	OEM New / Original Quality
Core Function	360° swing drive for upper structure; integrated hydraulic motor + planetary gearbox
Quality Standard	Genuine Bobcat spec; factory pressure & function tested
Warranty	12-month warranty (manufacturing defects covered)
MOQ	1 piece; sample & bulk orders available
Lead Time	In stock → ships in 1–3 working days
Target Users	Global dealers, repair shops, fleet operators

2. Key Features & Exact Technical Specifications

Key Features

OEM new swing motor reducer, direct bolt-on replacement for Bobcat mini excavators. Compact, integrated orbit motor + planetary gearbox design山猫(Bobcat). High-strength alloy gears and heavy-duty bearings ensure long life. Built-in brake for stable swing positioning. Premium seals prevent leakage. Zero-tail swing compatible, ideal for tight jobsites.

Exact Technical Specifications

Specification	Parameter
Type	Hydraulic orbit motor + planetary gearbox山猫(Bobcat)
OEM Part No.	7024418 (E19/E20), 7024419 (E17/E17Z)
Slew Speed	~9.7 RPM山猫(Bobcat)
Rated Pressure	21 MPa
Max Pressure	25 MPa
Output Torque	~380 Nm
Gear Ratio	1:45
Weight	~24 kg
Mounting	Direct fit, same as original
Hydraulic Ports	Matches Bobcat E-series standard
Oil Type	ISO VG46 anti-wear hydraulic oil
Working Temp	-20℃ ~ +80℃

3. Compatibility

Bobcat Models

7024418: E19, E19E, E20, E20Z
7024419: E17, E17Z

Cross Reference

7024418, 7024419; also fits Doosan DX17/DX17Z (7024419).

4. Technical Explanation

This unit combines a low-speed high-torque orbit motor with a rugged planetary gearbox, delivering precise, powerful swing rotation. The integral brake holds position on slopes. Compact design suits zero-tail-swing machines, reducing space while maintaining torque and reliability for landscaping, urban, and residential jobs.

5. Supplier Advantages (Belparts)

10+ years in mini excavator swing drives; accurate OEM matching.
OEM new & premium aftermarket options; full Bobcat E-series parts.
Exported to 150+ countries; CE-certified, strict QC.
Guangzhou stock; fast air/sea/express shipping.
Technical support for installation & troubleshooting.

6. FAQ

Q1: What’s the difference between 7024418 and 7024419?

A: 7024418 for E19/E20/E20Z；7024419 for E17/E17Z.

Q2: Is this genuine Bobcat?

A: OEM New, matches original specs and performance.

Q3: Does it come with a brake?

A: Yes, integrated holding brake included.

Q4: Ready to ship?

A: In stock; ships in 1–3 days.

#	Part No.	Description	Qty
1	7024418	MOTOR, SLEW; Ref. 2-55	1
2	7265145	HOUSING, BEARING	1
3	7265146	FLANGE, MOUNTING	1
4	7265147	GEAR PINION	1
5	7265184	PLUG; Was 7265148	2
6	7265149	PISTON	1
7	7265150	RING	1
8	7265151	COLLAR	1
9	7265152	DISC, FRICTION	6
10	7265153	PLATE, DISC	7
11	7265154	SPRING	8
12	7265155	BEARING	1
13	7265156	RING, SNAP	1
14	6693163	RING SNAP; NLA - Was 6693163	1
15	7265158	BEARING	1
16	7265159	RING, RETAINING; NSS - Order Ref. 56 - Was 7265159	1
17	7265160	O-RING; NSS - Order Ref. 56 - Was 7265160	3
18	7265161	O-RING; NSS - Order Ref. 56 - Was 7265161	1
19	7265162	BOLT	8
20	7265163	SEAL, SHAFT; NSS - Order Ref. 56 - Was 7265163	1
21	7001011	HOUSING MOTOR	1
22	7001010	DRIVE	1
23	7265166	PLATE, VALVE	1
24	1992084	DR VALVE; Was 7265167	1
25	7265168	VALVE	1
26	6630027	PLATE; Was 7265169	1
27	1992088	SPRING; Was 7265170	2
28	7265171	SEAL; NSS - Order Ref. 56 - Was 7265171	1
29	1992102	PIN; Was 7265172	2
30	7265173	SEAL; NSS - Order Ref. 56 - Was 7265173	1
31	7265174	RING, SNAP	1
32	7265175	O-RING; NSS - Order Ref. 56 - Was 7265175	2
33	7265176	O-RING; NSS - Order Ref. 56 - Was 7265176	1
34	7265177	O-RING; NSS - Order Ref. 56 - Was 7265177	3
35	7265178	BOLT	4
36	7265696	VALVE, RELIEF	1
37	7265180	O-RING; NSS - Order Ref. 56 - Was 7265180	2
38	7265181	O-RING; NSS - Order Ref. 56 - Was 7265181	2
39	7265182	O-RING; NSS - Order Ref. 56 - Was 7265182	2
40	----	PLUG; NSS	2
41	7265184	PLUG	4
42	7265185	PLUG	2
43	7265186	O-RING; NSS - Order Ref. 56 - Was 7265186	2
44	7265187	PLUG	2
45	----	SPRING, SEAT; NSS	2
46	----	SCREW SIDE; NSS	2
47	----	HEX SOCKET SET SCREW; NSS	2
48	----	NUT, HEX; NSS	2
49	----	SPRING, SEAT; NSS	2
50	----	SPRING; NSS	2
51	----	NEEDLE, VALVE; NSS	2
52	----	CARTRIDGE	2
53	----	BALL	2
54	----	SPRING; NSS	2
55	6693170	RELIEF CARTRIDGE	2
56	7273497	KIT, SEAL; Ref. 16-18, 20, 28, 30, 32-34, 37-39, 43 - Was 7265654	1
