Komatsu PC200LC-6LC / PC200-6 Hydraulic Bucket Cylinder | PN:205-63-02132 | Premium Aftermarket Replacement
1. Basic Product Info
This well-crafted aftermarket hydraulic bucket cylinder serves as a key replacement part for Komatsu PC200LC-6LC and PC200-6 medium excavators. It takes charge of bucket folding and unfolding to complete excavation, material loading and dumping work, which fits well for general construction sites, foundation engineering and rural earthmoving projects. All products are manufactured strictly following original OEM technical requirements, with unified mounting dimensions, pin hole spacing and hydraulic port layout. Users can carry out direct bolt-on installation on site without any cutting, welding or extra modification work.
| Item |
Specification |
| Product Name |
Hydraulic Bucket Cylinder |
| Applicable Model |
Komatsu PC200LC-6LC, PC200-6 |
| OEM Part Number |
205-63-02132 |
| Product Grade |
Brand New High-Quality Aftermarket |
| Warranty |
12 months against manufacturing defects |
| MOQ |
1 unit, sufficient stock for immediate delivery |
| QC Standard |
ISO9001 certified, full hydraulic pressure and cyclic tests before shipment |
2. Core Technical Parameters
| # |
Part No. |
Description |
Qty |
| G-1 |
(205-63-X2132) |
BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0) |
1 |
| G-1 |
(205-63-X2131) |
BUCKET CYLINDER G.,(SEE FIG.Y1620-41A0) |
1 |
|
---- |
==================== |
|
| 1 |
205-63-02132 |
CYLINDER ASS'Y |
1 |
| 1 |
205-63-02131 |
CYLINDER ASS'Y |
1 |
| 1 |
205-63-73342 |
Cylinder |
1 |
| 1 |
205-63-73341 |
Cylinder |
1 |
| 2 |
707-76-70110 |
Bushing |
1 |
| 3 |
07145-00070 |
SEAL,DUST? PISTON ROD |
2 |
| 4 |
205-63-73320 |
ROD,PISTON |
1 |
| 5 |
707-76-70120 |
Bushing |
1 |
| 6 |
21K-70-12180 |
SEAL,DUST (KIT) |
2 |
| 7 |
707-27-11680 |
HEAD,CYLINDER |
1 |
| 8 |
07179-13094 |
RING, SNAP |
1 |
| 9 |
195-63-92190 |
SEAL,DUST (KIT) |
1 |
| 10 |
707-52-90550 |
Bushing |
1 |
| 11 |
707-51-80030 |
PACKING,ROD (KIT) |
1 |
| 12 |
07000-15110 |
O-RING (KIT) |
1 |
| 13 |
07001-05110 |
RING,BACK-UP (KIT) |
1 |
| 14 |
707-51-80630 |
RING,BUFFER (KIT) |
1 |
| 15 |
01010-81670 |
BOLT,(WITH WEAR GUARD) |
12 |
| 16 |
01643-51645 |
WASHER, SPRING |
12 |
| 17 |
707-36-11510 |
Piston |
1 |
| 18 |
707-44-11280 |
RING,(Y1620-01A1-19) |
1 |
| 19 |
707-39-11510 |
RING,(Y1620-01A1-20) |
2 |
| 20 |
707-44-11920 |
Ring |
2 |
| 21 |
07165-15860 |
NUT,NYLON |
1 |
| 22 |
07020-00000 |
FITTING, GREASE - UPPER HINGE PIN |
1 |
| 23 |
07020-00900 |
FITTING, GREASE (STEERING CYLINDER) |
1 |
| 24 |
205-63-73371 |
Tube |
1 |
| 25 |
07372-21060 |
BOLT,(FOR TREE PUSHER) |
2 |
| 26 |
07372-21045 |
BOLT,(TREE PUSHER DOZER) |
2 |
| 27 |
01643-51032 |
WASHER, (WITHOUT EMERGENCY STEERING) |
4 |
| 28 |
07000-13030 |
O-RING,BOOM (FOR 50 FEET LONG FRONT) |
1 |
| 29 |
707-88-95370 |
Bracket |
2 |
| 30 |
707-88-95350 |
BAND |
2 |
| 31 |
01010-51035 |
BOLT,(FOR QUICK SHIFT) (MITSUBISHI) |
4 |
| 32 |
01643-51032 |
WASHER, (WITHOUT EMERGENCY STEERING) |
4 |
| 33 |
07282-02793 |
Clamp |
2 |
| 34 |
01010-51020 |
BOLT,(FOR QUICK SHIFT) (MITSUBISHI) |
4 |
| 35 |
01643-31032 |
WASHER,(WITH AUTO EMERGENCY STEERING) |
4 |
|
---- |
==================== |
|
| Spec Item |
Data |
| Bore Diameter |
115mm |
| Piston Rod Diameter |
75mm |
| Working Stroke |
1100mm |
| Rated Working Pressure |
31.4MPa |
| Factory Test Pressure |
47.1MPa (1.5 times the rated working pressure) |
| Barrel Material |
High-tensile seamless alloy steel with precision inner honing |
| Piston Rod |
40CrMo heat-treated steel, 28~32μm hard chrome plating, HRC68~72 for excellent wear and anti-deformation performance |
| Matching Seal Kit PN |
205-63-02132K |
| Working Temperature |
-25℃ ~ +85℃ |
| Structure |
Double ear lugs with quenched copper wear bushings, built-in buffer device to weaken working impact |
3. Product Advantages
- Complete OEM Compatibility: Matches the original component in all structural sizes, connecting smoothly with bucket linkages and hydraulic pipelines to ensure stable running after installation.
- Reinforced Practical Structure: The cylinder body and connecting lugs are thickened and optimized, capable of bearing long-term working loads and accidental impact on construction sites.
- Comprehensive Quality Control: Each finished cylinder passes full-stroke reciprocating test and high-pressure airtight test to thoroughly avoid internal and external oil leakage.
- Outstanding Cost Efficiency: It delivers reliable performance equivalent to genuine parts, effectively cutting down parts procurement cost for maintenance workshops and wholesale merchants.
- Diversified Logistics Solutions: In-stock items can be dispatched within 3 working days. Air freight is available for urgent orders, while sea freight is a cost-effective option for bulk purchases.
4. Supplier Brief

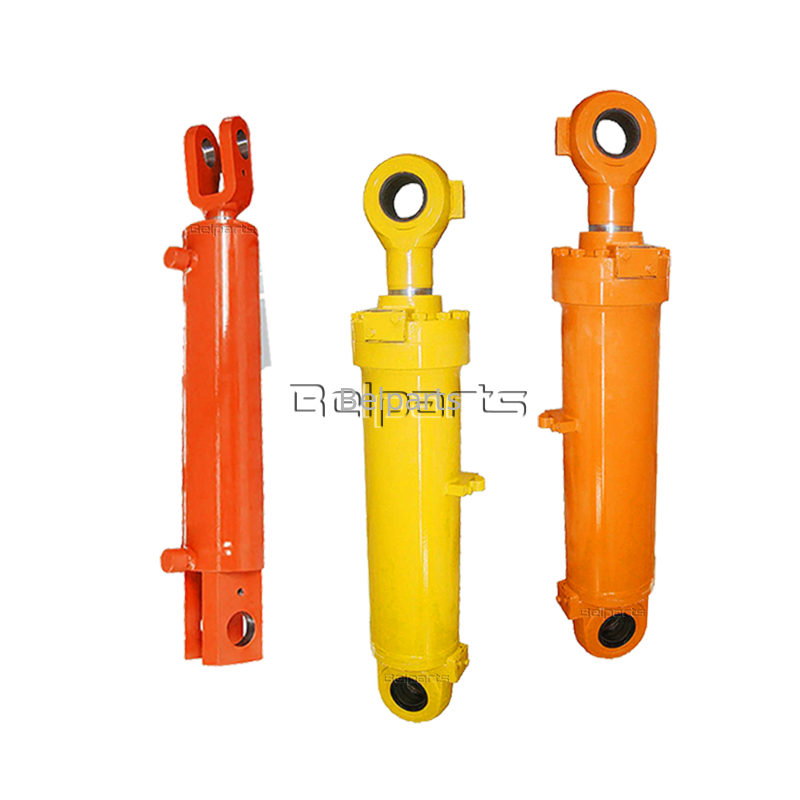

Our factory has been dedicated to the production of hydraulic cylinders for Komatsu medium excavators for more than a decade. We supply a full range of boom, arm and bucket cylinders for PC200 series and other mainstream models. With reliable quality and stable supply, our products are widely exported to aftermarket markets in Africa, Southeast Asia and the Middle East, gaining consistent trust from overseas customers.
5. FAQ
Q1: Can this bucket cylinder be used on PC200-7 or other modified versions?
A: No. PC200-7 and other upgraded models adopt different part numbers and overall dimensions, so they are not interchangeable. Please confirm the excavator model before ordering.
Q2: Does the standard package include the seal repair kit?
A: The seal kit is not included in standard products. You can purchase the dedicated repair kit separately and enjoy a favorable combined price for bundled orders.
Q3: What packaging is used for long-distance sea transportation?

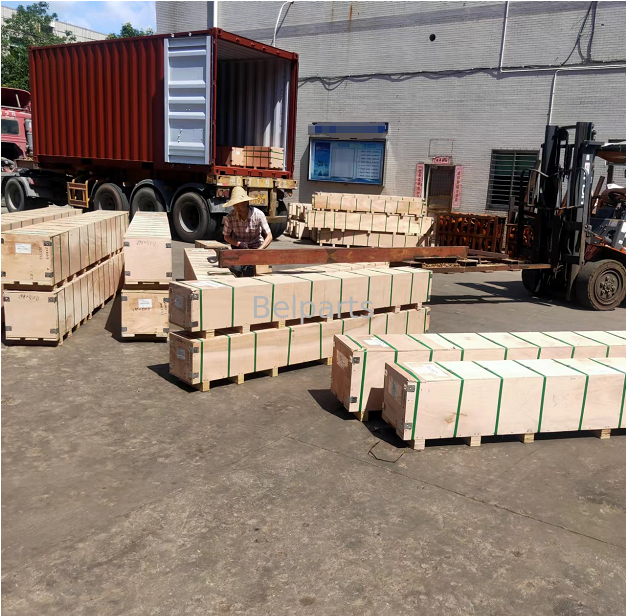

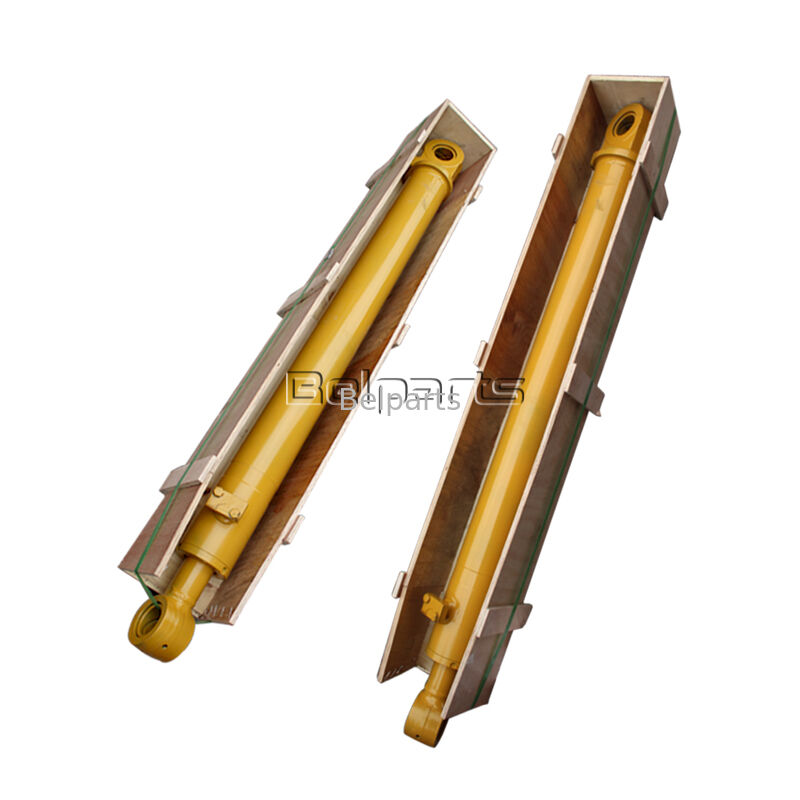

A: Anti-rust oil is injected into the cylinder interior, and anti-rust grease is coated on the piston rod. The whole product is wrapped with waterproof PE film and packed in sturdy export plywood cases.
Q4: Can we get a better price when ordering a full set of working cylinders?
A: Yes. Orders for complete cylinder sets enjoy tiered discounts, and we provide consolidated shipment to help you save logistics costs.
Q5: What support will be offered if oil leakage occurs during the warranty period?
A: Please provide clear photos of the leakage area and excavator serial number. We will offer free seal replacement and professional remote technical guidance in a timely manner.
