CX350B Hydraulic Bucket Cylinder for CASE Excavator | PN:KSV1928 | Premium Aftermarket Replacement
1. Basic Product Info
This dependable aftermarket hydraulic bucket cylinder is professionally manufactured to serve as a compatible replacement part for CASE CX350B excavators. As an essential hydraulic component of the working mechanism, it drives the bucket to execute digging, material gathering and discharging tasks efficiently. It is widely adopted in municipal engineering, quarry operations, general earthworks and various medium-to-large construction projects. All products are produced in strict accordance with CASE original OEM technical standards, featuring identical installation dimensions, pin hole spacing and hydraulic port layout. Operators can complete direct bolt-on assembly on site without cutting, welding or any extra modification work.
| Item |
Specification |
| Product Name |
Hydraulic Bucket Cylinder |
| Applicable Model |
CASE CX350B Excavator |
| OEM Part Number |
KSV1928 |
| Product Grade |
Brand New High-Quality Aftermarket |
| Warranty |
12 months against manufacturing defects |
| MOQ |
1 unit, ample stock for immediate delivery |
| QC Standard |
ISO9001 certified, full hydraulic pressure and cyclic tests before shipment |
2. Core Technical Parameters
| # |
Part No. |
Description |
Qty |
| 2 |
KSV1928 |
BUCKET CYLINDER |
1 |
|
---- |
See Page(s) 08-303-00 01 |
|
| 5 |
KSV1522 |
PIN |
1 |
| 6 |
102R020Y035R |
BOLT; M20 x 35 |
1 |
| 7 |
KTV1185 |
SPACER |
1 |
| 8 |
154548A1 |
O-RING |
2 |
| 9 |
KHV0481 |
TUBE ASSY. |
2 |
| 10 |
862-10040 |
HEX SOC SCREW,M10 x 40mm, Cl 12.9 |
8 |
| 11 |
KSV1545 |
HYDRAULIC HOSE,1700.00 mm |
2 |
| 12 |
KHJ1361 |
O-RING,0.07" Thk x 0.926" ID |
4 |
| 13 |
KSV1357 |
TUBE ASSY.,26 mm ID x 34 mm OD |
1 |
| 14 |
KSV1356 |
TUBE ASSY.,26 mm ID x 34 mm OD |
1 |
| 15 |
KSV1808 |
HYD TUBE,26 mm ID x 34 mm OD |
1 |
| 16 |
KSV1809 |
HYD TUBE,26 mm ID x 34 mm OD |
1 |
| 17 |
154548A1 |
O-RING |
2 |
| 18 |
862-10035 |
HEX SOC SCREW,M10 x 35mm, Cl 12.9; M16 x 35 |
8 |
| 19 |
162595A1 |
CLAMP |
1 |
| 20 |
150777A1 |
COLLAR |
6 |
| 21 |
827-16070 |
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9 |
7 |
| 22 |
150814A1 |
WASHER,17mm ID x 32mm OD x 4.5mm Thk; W16 |
7 |
| 23 |
KSP0828 |
SHIM,1.2mm Thk |
|
| Spec Item |
Data |
| Bore Diameter |
132mm |
| Piston Rod Diameter |
88mm |
| Working Stroke |
1440mm |
| Rated Working Pressure |
31.4MPa |
| Factory Test Pressure |
47.1MPa (1.5 times the rated working pressure) |
| Barrel Material |
High-tensile seamless alloy steel with precision inner honing |
| Piston Rod |
40CrMo heat-treated steel, 28~32μm hard chrome plating, HRC68~72 for superior wear resistance and anti-deformation performance |
| Matching Seal Kit PN |
KSV1928K |
| Working Temperature |
-25℃ ~ +85℃ |
| Structure |
Double ear lugs with quenched copper wear bushings, built-in buffer device to reduce impact during operation |
3. Product Advantages
- Genuine Fit & Reliable Connection: Every structural detail complies with original factory specifications. It mates perfectly with bucket linkages and hydraulic lines to maintain steady running status during long-time continuous operation.
- Durable Reinforced Structure: The cylinder tube and connecting lugs are optimized for medium-heavy load conditions, capable of resisting frequent dynamic loads and accidental impacts in complex construction environments.
- Full-Scale Pre-Delivery Inspection: Each finished cylinder undergoes repeated full-stroke movement tests and high-pressure airtight detection, effectively preventing internal and external oil leakage issues.
- Cost-Effective Alternative: It delivers the same stable performance and long service life as original CASE parts, helping spare parts retailers and maintenance teams cut down daily procurement costs noticeably.
- Timely Global Delivery: All in-stock products can be dispatched within 3 working days. Air freight is available for urgent orders, while sea freight is the most cost-efficient choice for bulk wholesale.
4. Supplier Brief
Our factory has accumulated abundant experience in developing and producing hydraulic cylinders for CASE CX series excavators for over a decade. We supply a complete range of boom, arm and bucket cylinders for CX350B and other mainstream CASE models. With mature production techniques and rigorous quality control mechanisms, our products are widely exported to aftermarket markets in Africa, Southeast Asia and the Middle East, earning great trust and positive feedback from global clients.
5. FAQ
Q1: Can this bucket cylinder be used on CASE CX300B or CX360B excavators?
A: No. Different CASE excavator models are equipped with exclusive part numbers and structural dimensions, so they are not interchangeable. Please confirm your equipment model before placing orders.
Q2: Does the standard package come with the matching seal repair kit?
A: The seal repair kit is not included in standard goods. You can purchase the dedicated supporting kit separately, and we will offer a favorable price for combined purchases.
Q3: What packaging is used for long-distance sea transportation?

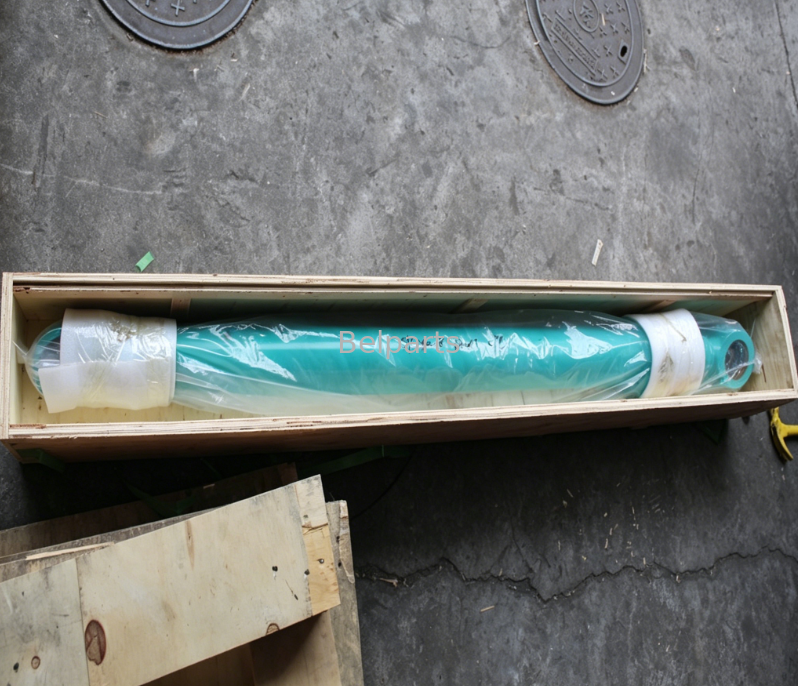

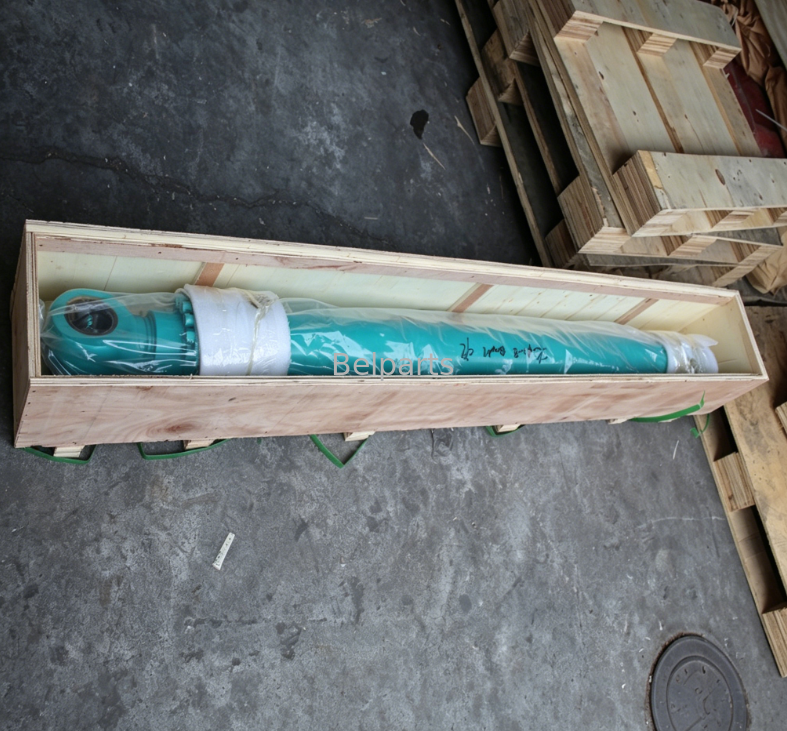

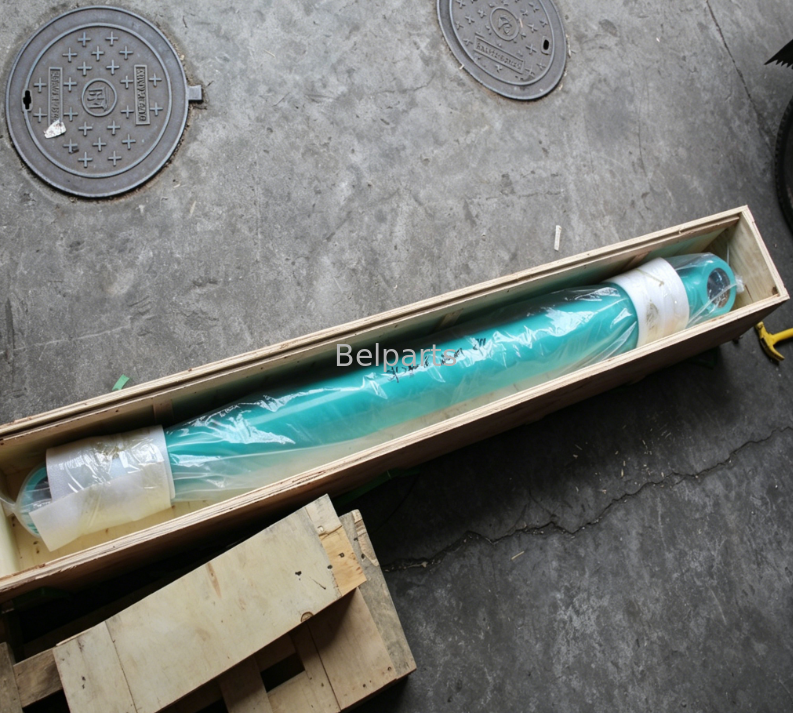

A: Anti-rust oil is injected into the cylinder interior, and anti-rust grease is coated on the piston rod. The whole product is wrapped with waterproof PE film and packed in sturdy export plywood cases.
Q4: Will there be preferential prices when purchasing a full set of working device cylinders?
A: Yes. Customers who order complete cylinder sets can enjoy tiered discounts. We also provide consolidated shipment service to help reduce logistics expenditure.
Q5: What support can we receive if oil leakage occurs within the warranty period?
A: Please provide clear photos of the leaking area and the excavator serial number. We will arrange free seal replacement and professional remote technical guidance in a timely manner.
