Deere 450D LC Main Hydraulic Pump 4633472 4633474 PG200028 Fit 450DLC Excavator Parts BELPARTS
Place of Origin:China
Brand Name:John Dere
Certification:CE
Model Number:450D LC
Minimum Order Quantity:1 PCS
Price:Negotiation
Payment Terms:L/C,D/A,D/P,T/T,WEST UNION,PAYPAL
Supply Ability:100 PCS / Months
Product Details
Highlight:
Deere 450D LC hydraulic pump
,excavator hydraulic pump parts
,BELPARTS main hydraulic pump
Model:
John Dere 450D LC
Part Name:
Main Hydraulic Pump
Application:
Excavator
Part Number:
4633472 4633474 PG200028
Condition:
New
Quality:
Aftermarket High Quality
Warranty:
12 Months
Shipment:
Sea / Air / Express DHL FEDEX UPS
Product Description

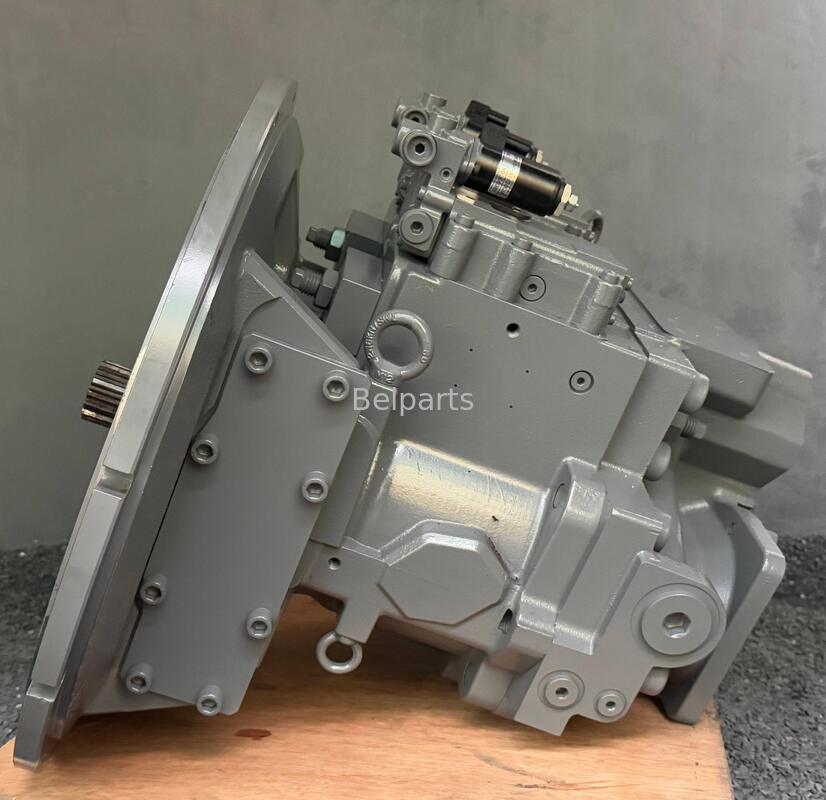

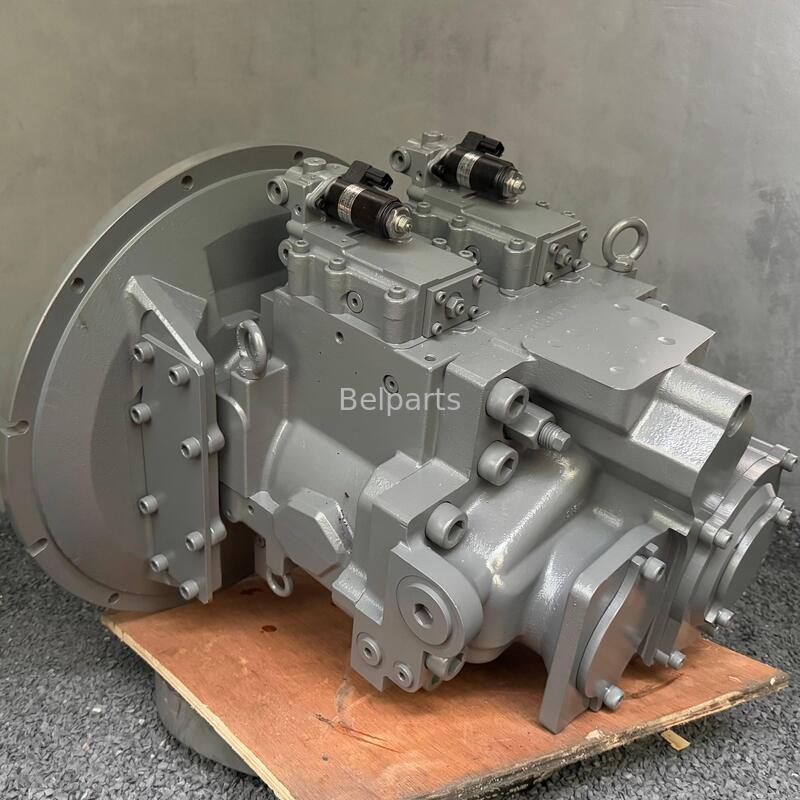

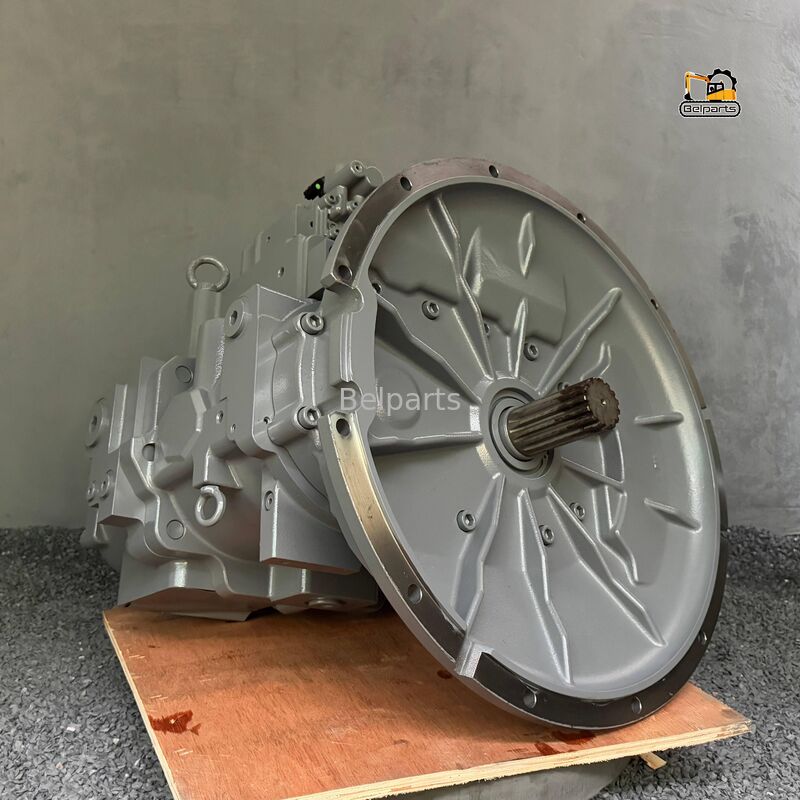

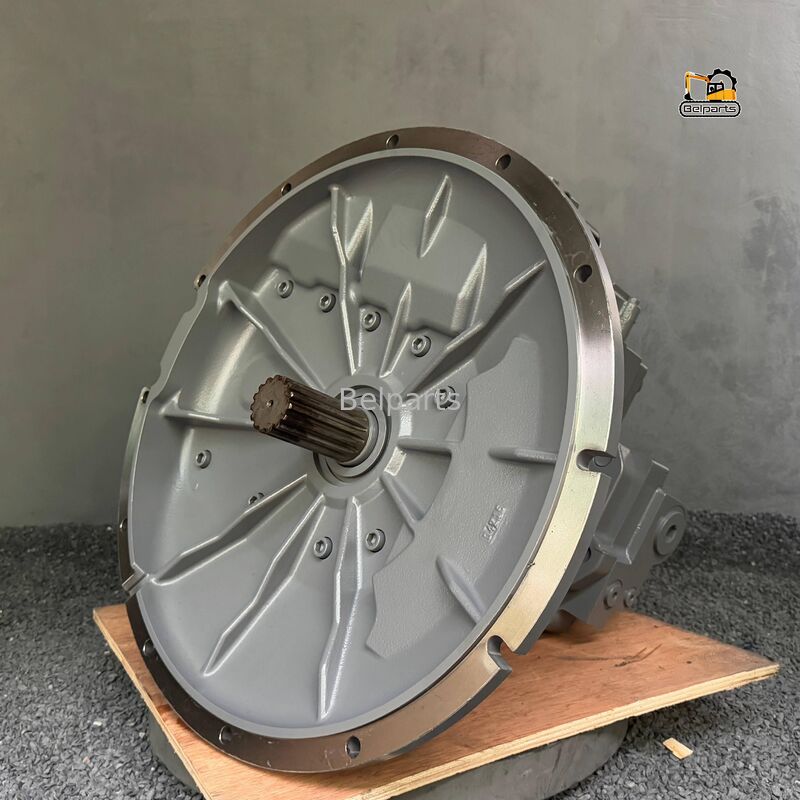

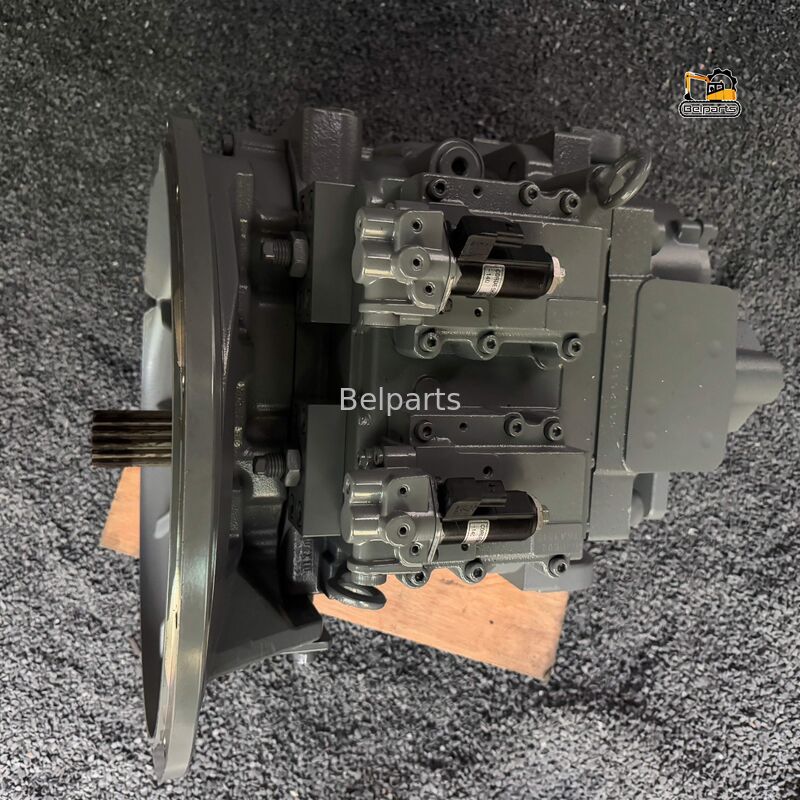

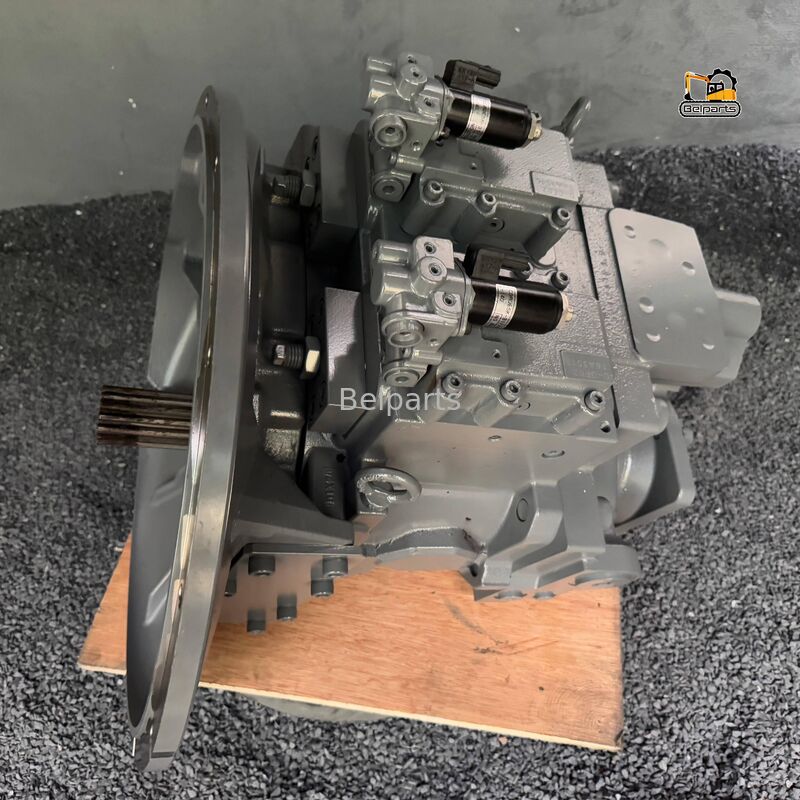

Deere 450D LC Main Hydraulic Pump
4633472 / 4633474 / PG200028 | Aftermarket New | Belparts Excavator Parts

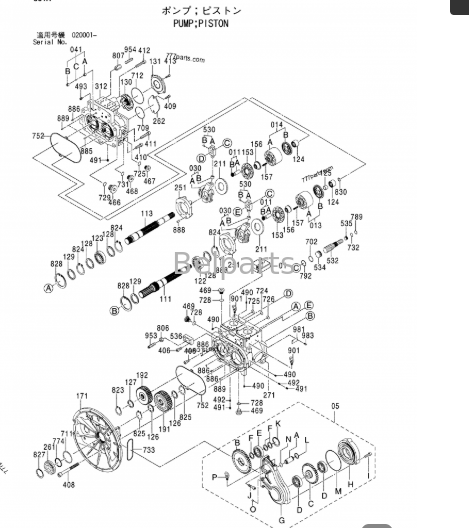

| # | Part No. | Description | Qty |
|---|---|---|---|
| 4633472 | PUMP; PISTON | 1 | |
| 01 | 4658831 | . PUMP; REGULATOR | 2 |
| 05 | 4654554 | . UNIT | 1 |
| 05A | ---- | .. SHAFT | 1 |
| 05B | ---- | .. GEAR | 1 |
| 05C | ---- | .. GEAR | 1 |
| 05D | 0978517 | .. BRG.; BALL | 2 |
| 05E | 0878107 | .. BRG.; ROL. | 1 |
| 05F | 0818508 | .. SPACER | 3 |
| 05G | ---- | .. CASE | 1 |
| 05H | ---- | .. CASE; GEAR | 1 |
| 05I | 0195126 | .. BOLT; SOCKET | 3 |
| 05J | M341236 | .. BOLT; SOCKET | 8 |
| 05K | 0978512 | .. O-RING | 1 |
| 05L | 0443404 | .. O-RING | 1 |
| 05M | 988850 | .. RING; RETAINING | 1 |
| 05N | 446751 | .. RING; RETAINING | 1 |
| 05O | ---- | .. PIN | 2 |
| 05P | 4091248 | .. BOLT; EYE | 1 |
| 011 | 0820401 | . PISTON ASS'Y | 2 |
| 011A | ---- | .. PISTON | 9 |
| 011B | ---- | .. SHOE | 9 |
| 013 | 0820402 | . CYL. ASS'Y | 1 |
| 013A | ---- | .. BLOCK; CYL. | 1 |
| 013B | ---- | .. PLATE; VALVE | 1 |
| 014 | 0451003 | . CYL. ASS'Y | 1 |
| 014A | ---- | .. BLOCK; CYL. | 1 |
| 014B | ---- | .. PLATE; VALVE | 1 |
| 030 | 0772701 | . PLATE ASS'Y | 2 |
| 030A | ---- | .. PLATE | 1 |
| 030B | ---- | .. BUSHING | 1 |
| 041 | 0708004 | . VALVE; CHECK ASS'Y | 2 |
| 041A | ---- | .. SEAT | 1 |
| 041B | ---- | .. STOPPER | 1 |
| 041C | ---- | .. BALL; STEEL | 1 |
| 111 | 0978501 | . SHAFT | 1 |
| 113 | 0820406 | . SHAFT | 1 |
| 122 | 0820407 | . BRG.; ROL. | 1 |
| 123 | 0978502 | . BRG.; ROL. | 1 |
| 124 | 0978503 | . BRG.; NEEDLE | 2 |
| 125 | 0978504 | . RING; INNER | 1 |
| 126 | 0820409 | . SPACER | 2 |
| 127 | 0820410 | . SPACER | 1 |
| 128 | 0820411 | . SPACER | 3 |
| 129 | 0820412 | . SPACER | 2 |
| 130 | 0978505 | . BOOSTER | 1 |
| 131 | 0820414 | . COVER | 1 |
| 153 | 0820415 | . RETAINER | 2 |
| 156 | 0820416 | . BUSHING | 2 |
| 157 | 0451016 | . SPRING | 18 |
| 171 | 0978506 | . CASING | 1 |
| 191 | 0820418 | . GEAR; DRIVE | 1 |
| 192 | 0820419 | . GEAR | 1 |
| 211 | 0451018 | . PLATE | 2 |
| 251 | 0820420 | . SUPPORT | 2 |
| 261 | 0978507 | . COVER | 1 |
| 262 | 0820422 | . COVER | 1 |
| 271 | 0978508 | . CASING | 1 |
| 312 | 0978509 | . COVER | 1 |
| 405 | 0978510 | . BOLT; SOCKET | 8 |
| 406 | M341236 | . BOLT; SOCKET | 8 |
| 408 | 0131103 | . BOLT; SOCKET | 11 |
| 409 | 0820425 | . BOLT; SOCKET | 2 |
| 410 | 0820426 | . BOLT; SOCKET | 9 |
| 411 | 0820427 | . BOLT; SOCKET | 2 |
| 412 | 0820428 | . BOLT; SOCKET | 1 |
| 413 | M341025 | . BOLT; SOCKET | 5 |
| 466 | 0978511 | . PLUG | 2 |
| 467 | 0629404 | . PLUG | 2 |
| 468 | 0626901 | . PLUG | 2 |
| 469 | 0697911 | . PLUG | 3 |
| 490 | 0263019 | . PLUG | 20 |
| 491 | 0451028 | . PLUG | 12 |
| 492 | 0451027 | . SCREW | 4 |
| 493 | 0102440 | . PLUG | 2 |
| 530 | 0820438 | . PIN ASS'Y | 2 |
| 530A | ---- | .. PIN | 2 |
| 530B | ---- | .. PIN | 2 |
| 532 | 0820429 | . PISTON; SERVO | 2 |
| 534 | 0451031 | . STOPPER | 2 |
| 535 | 0820430 | . STOPPER | 2 |
| 536 | 0820431 | . COVER | 2 |
| 702 | 0451033 | . O-RING | 2 |
| 709 | 0694604 | . O-RING | 2 |
| 711 | 0820432 | . O-RING | 1 |
| 712 | 0820433 | . O-RING | 1 |
| 724 | 0443801 | . O-RING | 9 |
| 725 | 4297379 | . O-RING | 2 |
| 726 | 0443405 | . O-RING | 2 |
| 728 | 0443408 | . O-RING | 5 |
| 729 | 0719402 | . O-RING | 2 |
| 731 | 0443407 | . O-RING | 2 |
| 732 | 0451035 | . O-RING | 2 |
| 733 | 0978512 | . O-RING | 1 |
| 752 | 0820439 | . PACKING | 2 |
| 774 | 0820443 | . SEAL; OIL | 1 |
| 789 | 0451036 | . RING; BACK-UP | 2 |
| 792 | 0451037 | . RING; BACK-UP | 2 |
| 806 | 0451038 | . NUT | 2 |
| 807 | 0820434 | . NUT | 2 |
| 823 | 959499 | . RING; RETAINING | 1 |
| 824 | 991345 | . RING; RETAINING | 3 |
| 825 | 488075 | . RING; RETAINING | 2 |
| 827 | 991728 | . RING; RETAINING | 1 |
| 828 | 0820435 | . RING; RETAINING | 2 |
| 830 | 0978513 | . RING; RETAINING | 1 |
| 885 | 0313404 | . PIN | 2 |
| 886 | 0244604 | . PIN; SPRING | 4 |
| 888 | 0978514 | . PIN | 2 |
| 889 | 0978515 | . PIN | 4 |
| 901 | 0134458 | . BOLT; EYE | 2 |
| 953 | 0978516 | . SCREW; SET | 2 |
| 954 | 0682328 | . SCREW; SET | 2 |
| 981 | ---- | . PLATE | 1 |
| 983 | 0625509 | . PIN | 2 |
1. Basic Info
- Part Name: Kawasaki K5V200DPH tandem variable axial piston main pump (with pilot gear pump)
- OEM Numbers:
- 4633472 4633474: Deere main pump assembly
- PG200028: Deere / Hitachi interchange number
- Fits Model: Deere 450D LC / 450DLC (48-ton large excavator)
- Condition: Aftermarket New (Korean/Chinese high‑quality aftermarket)
- Warranty: 12 months
- Weight: Approx. 280–300 kg
- Stock: In stock, ships 3–7 working days
2. Key Features
- Kawasaki K5V200DPH OEM Design: Matches original pump specs for 450DLC
- Tandem Piston + Pilot Gear: 2× variable pistons + integrated gear pilot
- Load‑Sensing System: Optimized for Deere PowerTech 6101 engine (258 kW / 346 hp)
- Direct Bolt‑On Fit: No modifications needed for 450DLC
- High Flow & Pressure: Meets large excavator heavy‑duty hydraulic demands
- Belparts Quality: 100% pressure, leakage, and efficiency tested; CE certified
3. Technical Specifications
- Main Pumps (2 × Variable Piston):
- Rated Flow: 2 × 379 L/min (2×100 gpm) @ 2,000 rpmDeere
- Implement Pressure: 319 bar (4,625 psi)Deere
- Travel Pressure: 343 bar (4,980 psi)Deere
- Pilot Pump (Gear Type):
- Rated Flow: 30 L/min (7.9 gpm)Deere
- Pressure: 39 bar (566 psi)Deere
- Total Flow: ~788 L/min (208 gpm)
- Rotation: Counterclockwise (LH)
- Drive: Direct engine mount (SAE J611 flange)
4. Compatibility & Cross Reference
- Fits: Deere 450D LC, 450DLC
- Interchange P/N: 4633472, PG200028
- Also Fits: Hitachi ZX450‑3 (same Kawasaki K5V200DPH base)
5. Belparts Advantages
- 13+ years in 45–50 ton large excavator main hydraulic pumps
- Strict QC: Full pressure, efficiency, and leakage testing
- Global warehouse stock (Guangzhou), fast sea/air shipping
- Professional technical support & installation guidance
- Competitive pricing vs. genuine OEM
6. FAQ
Q1: Is this pump the same as Kawasaki K5V200DPH?
A: Yes, 4633472 is the Deere part number for the K5V200DPH Kawasaki pump.
Q2: Does it fit both 450D and 450DLC?
A: Yes, it is a direct replacement for standard (450D) and long‑undercarriage (450DLC) models.
Q3: What’s the typical lead time?
A: In stock, ships within 3–7 working days; air/sea shipping available.
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
JThis OEM-quality hydraulic pump fits my machine perfectly, and it runs very well on it.
