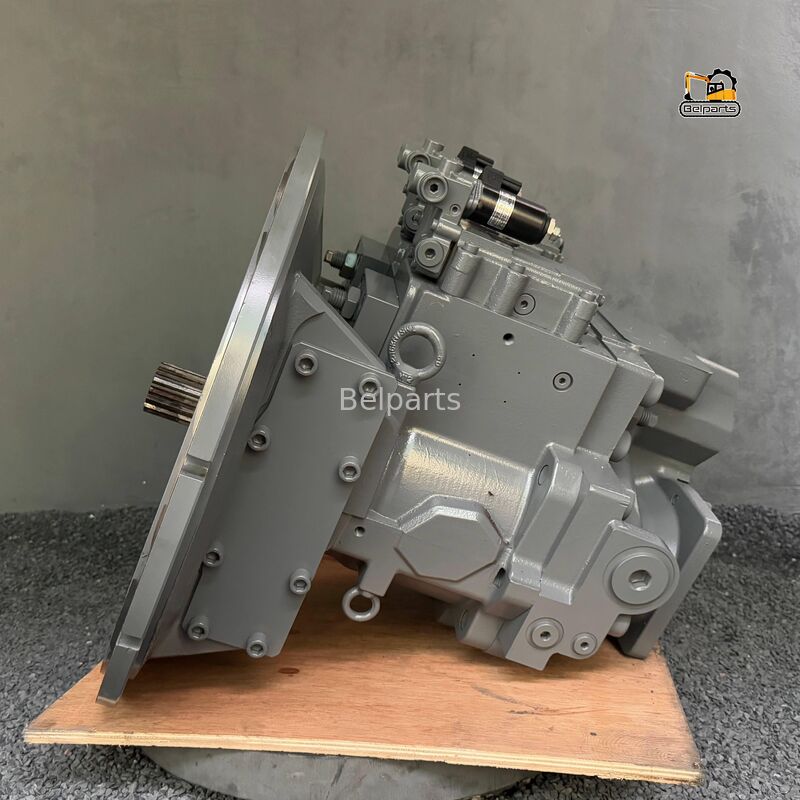

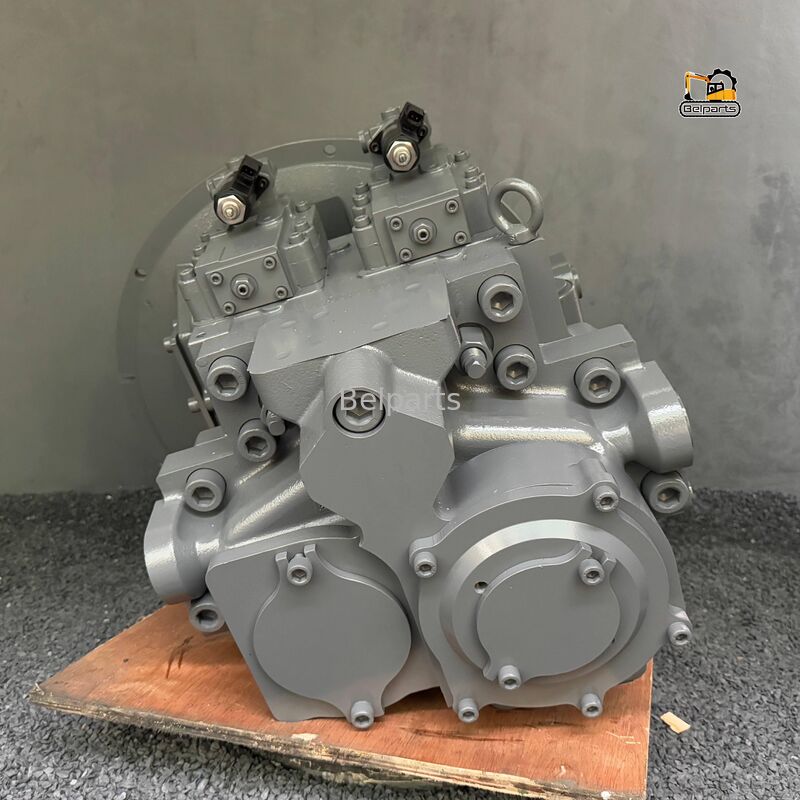

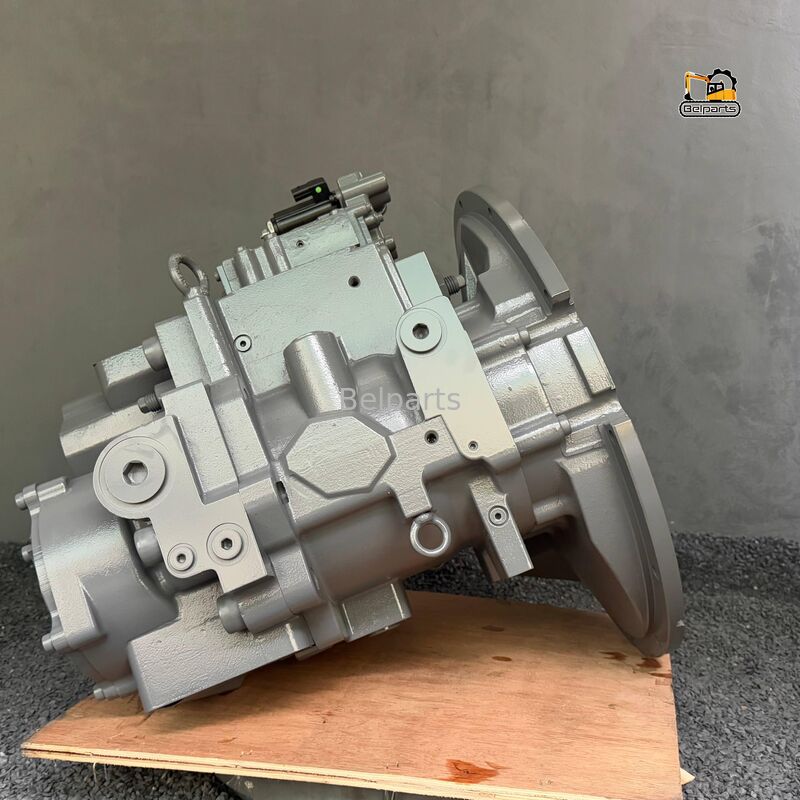

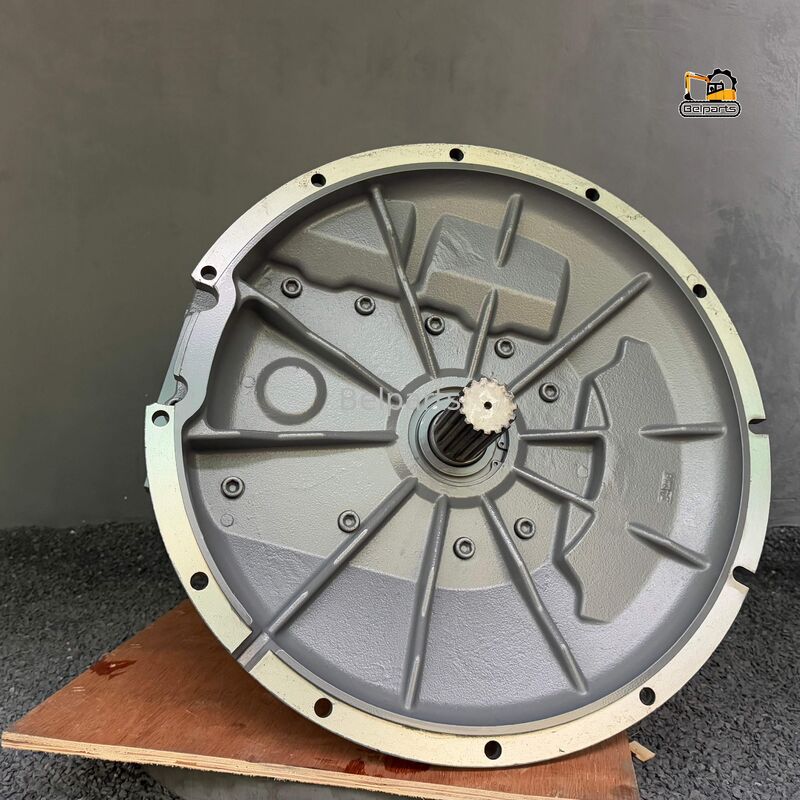

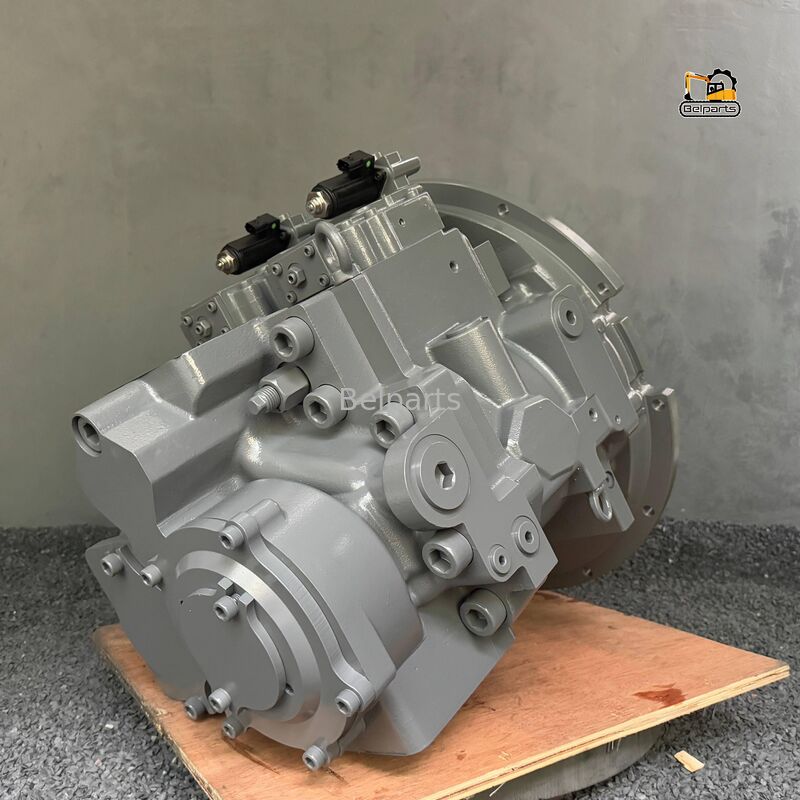

Hitachi ZX470LC-5B ZX470LCH-5B Main Hydraulic Pump 4699645 Fit Excavator Parts BELPARTS
Place of Origin:China
Brand Name:BELPARTS
Certification:CE
Model Number:ZX470LC-5B ZX470LCH-5B
Minimum Order Quantity:1 PCS
Price:Negotiation
Payment Terms:L/C,D/A,D/P,T/T,WEST UNION,PAYPAL
Supply Ability:100 PCS / Months
Product Details
Model:
ZX470LC-5B ZX470LCH-5B
Part Name:
Main Hydraulic Pump
Application:
Excavator
Part Number:
4699645
Condition:
New
Quality:
Aftermarket High Quality
Warranty:
12 Months
Shipment:
Sea / Air / Express DHL FEDEX UPS
Product Description
Hitachi ZX470LC-5B / ZX470LCH-5B Main Hydraulic Pump
4699645 / YA00035147 / PG202165 | Aftermarket New | BELPARTS

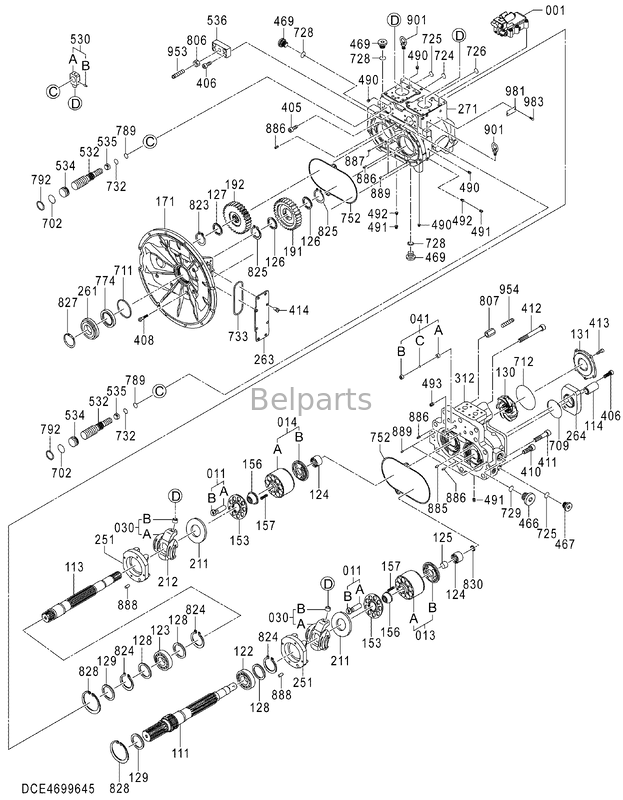

| Pos. | Part No | Qty | Parts name |
|---|---|---|---|
| 0. | 4699645 | [1] | PUMP;PISTON |
| 001. | XA0000129 | [2] | REGULATOR,PUMP |
| 011. | 0945803 | [2] | PISTON |
| 011A. | +++++++ | [9] | PISTON |
| 011B. | +++++++ | [9] | SHOE |
| 013. | XB00001474 | [1] | CYL. |
| 013A. | +++++++ | [1] | BLOCK,CYL. |
| 013B. | +++++++ | [1] | PLATE;VALVE |
| 014. | XB00001476 | [1] | CYL. |
| 014A. | +++++++ | [1] | BLOCK,CYL. |
| 014B. | +++++++ | [1] | PLATE;VALVE |
| 030. | 0772701 | [2] | PLATE |
| 030A. | XB0000459 | [1] | PLATE |
| 030B. | XB0000460 | [1] | BUSHING |
| 041. | 0820444 | [2] | VALVE;CHECK AS |
| 041A. | +++++++ | [1] | SEAT |
| 041B. | +++++++ | [1] | STOPPER |
| 041C. | +++++++ | [1] | BALL |
| 111. | XB00001478 | [1] | SHAFT;DRIVE |
| 113. | 0820406 | [1] | SHAFT |
| 114. | XB00001479 | [1] | COUPLING |
| 122. | 0820407 | [1] | BRG.;ROL. |
| 123. | 0820453 | [1] | BRG.;ROL. |
| 124. | 0978503 | [2] | BRG.;NEEDLE |
| 125. | 0978504 | [1] | RING;INNER |
| 126. | 0820409 | [2] | SPACER |
| 127. | 0820410 | [1] | SPACER |
| 128. | 0820411 | [3] | SPACER |
| 129. | 0820412 | [2] | SPACER |
| 130. | 0978505 | [1] | BOOSTER |
| 131. | 0820414 | [1] | COVER |
| 153. | 0820415 | [2] | RETAINER |
| 156. | 0820416 | [2] | BUSHING |
| 157. | 0451016 | [18] | SPRING |
| 171. | XB00001480 | [1] | CASING;FRONT |
| 191. | XB00001481 | [1] | GEAR;DRIVE |
| 192. | XB00001482 | [1] | GEAR;DRIVE |
| 211. | 0353311 | [2] | PLATE |
| 251. | 0820420 | [2] | SUPPORT |
| 261. | 0820440 | [1] | COVER;SEAL |
| 263. | XB00001483 | [1] | COVER |
| 264. | XB00001484 | [1] | PLATE |
| 271. | 0978508 | [1] | CASING |
| 312. | XB00001485 | [1] | COVER |
| 405. | 0978510 | [8] | BOLT;SOCKET |
| 406. | M341236 | [10] | BOLT;SOCKET |
| 408. | 0131103 | [11] | BOLT |
| 410. | 0820426 | [9] | BOLT;SOCKET |
| 411. | 0820427 | [2] | BOLT;SOCKET |
| 412. | 0820428 | [1] | BOLT;SOCKET |
| 413. | M341025 | [5] | BOLT;SOCKET |
| 414. | 0210221 | [8] | BOLT |
| 466. | 0978511 | [2] | PLUG |
| 467. | 0629404 | [2] | PLUG |
| 469. | 0708502 | [3] | PLUG |
| 490. | 0934502 | [20] | PLUG |
| 491. | 0934503 | [12] | PLUG |
| 492. | 0451027 | [4] | SCREW |
| 493. | 0102440 | [2] | PLUG |
| 530. | 0820438 | [2] | PIN |
| 530A. | +++++++ | [1] | PIN |
| 530B. | +++++++ | [1] | PIN |
| 532. | 0820429 | [2] | PISTON;SERVO |
| 534. | 0451031 | [2] | STOPPER |
| 535. | 0820430 | [2] | STOPPER |
| 536. | 0820431 | [2] | COVER |
| 702. | 0451033 | [2] | O-RING |
| 709. | 0694604 | [1] | O-RING |
| 711. | 0820432 | [1] | O-RING |
| 712. | 0820433 | [1] | O-RING |
| 724. | 0443801 | [9] | O-RING |
| 725. | 0981201 | [6] | O-RING |
| 726. | 0443405 | [2] | O-RING |
| 728. | 0443408 | [3] | O-RING |
| 729. | 0719402 | [2] | O-RING |
| 732. | 0451035 | [2] | O-RING |
| 733. | 0978512 | [1] | O-RING |
| 752. | 0820439 | [2] | PACKING |
| 774. | 0978520 | [1] | SEAL;OIL |
| 789. | 0451036 | [2] | RING;BACK-UP |
| 792. | 0451037 | [2] | RING;BACK-UP |
| 806. | 0451038 | [2] | NUT |
| 807. | 0820434 | [2] | NUT |
| 823. | 959499 | [1] | RING;RETAINING |
| 824. | 991345 | [3] | RING;RETAINING |
| 825. | 488075 | [2] | RING;RETAINING |
| 827. | 991728 | [1] | RING;RETAINING |
| 828. | 0820435 | [2] | RING;RETAINING |
| 830. | 0978513 | [1] | RING;RETAINING |
| 885. | 0313404 | [2] | PIN |
| 886. | 0244604 | [4] | PIN;SPRING |
| 887. | 0175240 | [1] | PIN |
| 888. | 0978514 | [2] | PIN |
| 889. | 0978515 | [4] | PIN |
| 901. | 0134458 | [2] | BOLT;EYE |
| 953. | 0978516 | [2] | SCREW;SET |
| 954. | 0682528 | [2] | SCREW;SET |
| 981. | +++++++ | [1] | PLATE |
| 983. | 0625509 | [2] | PIN |
1. Basic Info
- Part Name: Kawasaki K5V200DPH tandem variable axial piston main pump (with pilot gear pump)
- OEM Numbers:
- 4699645: Hitachi main pump assembly
- YA00035147 / FYA00035147: Hitachi OEM cross-reference
- PG202165: Deere interchange (470G LC / P‑Tier)
- Fits Models:
- Hitachi ZX470LC‑5B (standard long carriage)
- Hitachi ZX470LCH‑5B (heavy‑duty high‑capacity)
- Also fits ZX470‑5A / ZX470LC‑6 / ZX490‑6
- Condition: Aftermarket New (high‑quality replacement)
- Warranty: 12 months
- Weight: Approx. 250–300 kg
- Stock: In stock, ships 3–7 working days
2. Key Features
- Kawasaki K5V200DPH OEM Design: Exact match for Hitachi ZX470‑5B series
- Tandem Piston + Pilot Gear: 2× variable piston pumps + integrated gear pilot
- Load‑Sensing System: Optimized for Isuzu AA‑6WG1TQA engine (235 kW / 315 HP)
- Direct Bolt‑On Fit: No modifications needed for 5B series excavators
- High Flow & Pressure: Meets 47‑ton heavy‑duty hydraulic requirements
- BELPARTS Quality: 100% pressure, leakage, and efficiency tested; CE certified
3. Technical Specifications
- Main Pumps (2 × Variable Piston):
- Rated Flow: 2 × 360 L/min @ 1,800 rpm
- Implement Pressure: 319 bar (4,627 psi)
- Travel Pressure: 353 bar (5,120 psi)
- Swing Pressure: 284 bar (4,119 psi)
- Pilot Pump (Gear Type):
- Rated Flow: 30 L/min
- Pressure: 39 bar (566 psi)
- Total Flow: ~750 L/min
- Rotation: Counterclockwise (LH)
- Drive: Direct engine mount (SAE J611 flange)
4. Compatibility & Cross Reference
- Fits: Hitachi ZX470LC‑5B, ZX470LCH‑5B
- Interchange P/N: 4699645, YA00035147, FYA00035147, PG202165
- Also Fits:
- Hitachi ZX470‑5A, ZX470LC‑6, ZX490‑6
- Deere 470G LC, 470 P‑Tier
5. BELPARTS Advantages
- 13+ years in 45–50 ton Hitachi / Deere main hydraulic pumps
- Strict QC: Full pressure, efficiency, and leakage testing
- Global warehouse stock (Guangzhou), fast sea/air shipping
- Professional technical support & installation guidance
- Competitive pricing vs. genuine OEM
6. FAQ
Q1: Does it fit both ZX470LC‑5B and ZX470LCH‑5B?
A: Yes, same pump assembly for both standard and heavy‑duty 5B models.
Q2: Is this the same as Kawasaki K5V200DPH?
A: Yes, 4699645 is the Hitachi part number for the K5V200DPH Kawasaki pump.
Q3: What’s the lead time?
A: In stock, ships within 3–7 working days; air/sea shipping available.
