Quality Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator factory

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

Name: Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator
Brand: BELPARTS MACHINERY LIMITED
SKU: KX161-3 KX161-3S
Price: 475.00 USD
Availability: InStock

Place of Origin:Made in china

Brand Name:Belparts

Model Number:KX161-3 KX161-3S

Minimum Order Quantity:1PCS

Price:Negotiated price

Payment Terms:T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union,

Supply Ability:100 PCS / Months

Product Details

Highlight:

Kubota KX161-3 hydraulic pump

,

Mini excavator hydraulic pump

,

OEM hydraulic pump excavator

Quality: OEM

Part Name: Hydraulic Pump

Part Number: B0610-54010 RD538-61112 RD538-61111 RD538-61115 RD411-61113

Model: KX161-3 KX161-3S

Application: Excavator

Shipment: Sea / Air / Express DHL FEDEX UPS

Warranty: 1 Year

Type: PSVL-54CG-16

Product Description

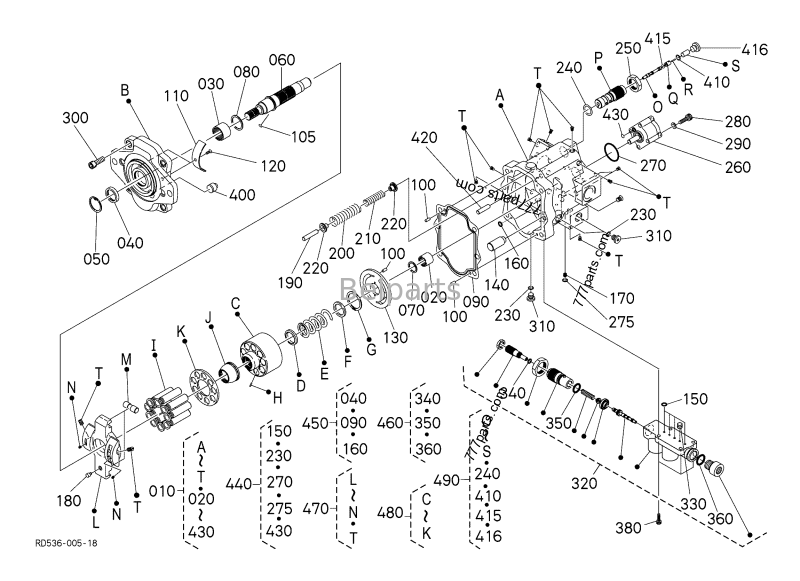

#	Part No.	Description	Qty
010	RD538-61112	ASSY PUMP,PISTON; Serial No. >=30437; Replacement	1
010	RD538-61111	ASSY PUMP,PISTON; Serial No. <=30436	1
010	RD538-61115	ASSY PUMP,PISTON; Serial No. >=32724; Replacement	1
020	RP801-79080	BEARING NEEDLE	1
030	RD411-69210	BEARING NEEDLE	1
040	RP401-79090	SEAL OIL	1
050	04611-00420	SNAP RING INTERNAL	1
060	RD411-69220	SHAFT	1
070	RD201-69210	WASHER THRUST	1
080	RD101-69560	WASHER THRUST	1
090	RD411-69232	GASKET	1
100	68493-71450	PIN STRAIGHT	3
105	04817-00030	O RING	1
110	RD411-69242	BUSH	2
120	RD411-69250	BOLT	2
130	RD431-69260	PLATE,VALVE	1
140	RD411-69272	PIN	1
150	04817-00080	O RING	5
160	04817-00080	O RING	1
170	RD118-69281	ORIFICE; Serial No. <=32723	1
170	RD431-69280	ORIFICE; Serial No. >=32724; Replacement	1
180	RD411-69290	STOPPER	1
190	RD118-69310	PIN	1
200	RD411-69320	SPRING	1
210	RD431-69330	SPRING	1
220	RD411-69340	SEAT SPRING	2
230	04817-00110	O RING	2
240	04817-00210	O RING; Serial No. <=32723	1
240	RD431-69450	O - RING; Serial No. >=32724; Not Interchangeable	1
250	RD411-69350	NUT	1
260	RD118-69402	PUMP,GEAR; Serial No. >=32724; Not Interchangeable	1
260	RD118-69401	PUMP,GEAR; Serial No. <=32723	1
270	RD118-69380	O RING	1
275	RD431-69430	O RING	1
280	01311-10845	SCREW,HEX SOC CAP; Serial No. <=32723	2
280	01311-10855	SCREW,HEX SOC CAP; Serial No. >=32724; Not Interchangeable	2
290	04012-50080	WASHER SPRING	2
300	01311-11235	SCREW,HEX SOC CAP	6
310	68651-72380	PLUG	2
320	RD431-69502	ASSY VALVE	1
330	RD431-69440	ORIFICE	1
340	04817-00080	O RING	1
350	04817-00160	O RING	1
360	04817-00110	O RING	1
380	01311-10616	SCREW,HEX SOC CAP	4
400	RD411-69360	STOPPER	1
410	04817-00140	O RING	1
415	04817-00080	O RING	1
416	68651-72450	PLUG	1
420	RD411-69372	PIN	1
430	RD118-69430	O RING	1
440	RD431-69600	KIT SEAL,CASE	1
450	RD431-69700	KIT SEAL	1
460	RD431-69802	KIT SEAL,VALVE	1
470	RD431-69100	KIT PLATE SWASH	1
480	RD431-69200	ASSY CYLINDER	1
490	RD431-69300	ASSY VALVE; Serial No. <=32723	1
490	RD431-69302	ASSY VALVE; Serial No. >=32724; Replacement	1

PSVL-54CG-16 RD411-61113 RD538-61111 RD538-61112 RD538-61115 Main Hydraulic Pump for Kubota KX161-3 KX161-3S Mini Excavator

1. OEM Part Number & Machine Compatibility

Original pump model: KYB PSVL-54CG-16 single variable displacement axial piston pump assembly
Kubota OEM part numbers: RD411-61113, RD538-61111, RD538-61112, RD538-61115
Fully compatible excavator models: Kubota KX161-3, KX161-3S
All four part numbers are iterative supersession replacement numbers, with identical external mounting dimensions and internal hydraulic parameters, fully mutually interchangeable for direct replacement installation

2. Core Technical Specifications

Structure type: Variable axial piston main pump (first stage + second stage) integrated with built-in pilot charge gear pump
Displacement: 54 cm³/rev, precisely matched to factory load-sensing hydraulic system configuration of KX161-3 / KX161-3S midi excavator platform

Second Stage Specified Parameters

Rated working pressure (second stage): 24.5 MPa
Maximum relief pressure (second stage): 28.0 MPa
Rated operating speed (second stage): 2200 rpm
Corresponding rated input power (second stage): 51.8 kW
Operating speed range calibrated to match the rated output speed of original engine equipped on these two excavator models
Mounting hole layout, input shaft spline size and hydraulic port position strictly conform to Kubota OEM dimensional drawings
Pump housing adopts high-strength ductile iron; internal pistons, valve plates and friction wear components are made of quenched wear-resistant alloy steel to improve abrasion resistance and extend service life

3. Internal Structure & Functional Introduction

Variable main piston pump outputs high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing composite movements
Integrated pilot gear pump supplies stable pressure oil for pilot control circuit and system hydraulic oil replenishment
Built-in load-sensing power regulator automatically adjusts pump total flow output according to real-time load variation, effectively preventing engine stall during heavy digging and loading operations
Compact integrated structure fits perfectly inside the reserved hydraulic compartment space of KX161-3 and KX161-3S excavators

4. Product Advantages

Exact 1:1 OEM casting external size, supporting plug-and-play installation without modifying hydraulic pipelines or chassis mounting structure
Every finished pump passes comprehensive hydraulic bench test before shipment, including pressure stability, flow consistency and internal leakage inspection
Complete overhaul spare parts are in stock, including seal repair kits, piston assemblies, swash plates and valve plates for individual component replacement during maintenance
Multiple supersession OEM numbers correspond to two machine versions, simplifying spare part ordering, classification and inventory management for dealers and repair workshops

5. Packaging & Global Delivery Details

Input shaft and all hydraulic ports are coated with anti-rust grease and sealed with dust-proof plugs
The whole pump is wrapped with moisture-proof plastic film and fixed inside export solid wooden case to avoid collision and damp corrosion during long-distance sea or air transportation
In-stock products can be arranged for delivery within 3–5 working days after order confirmation
Multiple global shipping solutions are available: international express, sea LCL/FCL bulk shipment, and overland truck transport for Southeast Asian markets

6. FAQ

Q: Are RD411-61113, RD538-61111, RD538-61112, RD538-61115 interchangeable with each other?

A: Yes, these four part numbers are upgraded replacement codes for the same KYB PSVL-54CG-16 pump assembly, fully cross-replaceable for KX161-3 and KX161-3S.
Q: Can this pump be directly installed on both KX161-3 and KX161-3S?

A: Yes, unified mounting dimension and factory preset hydraulic calibration enable direct bolt-on installation for both models without extra adjustment or modification.
Q: What is the relationship between PSVL-54CG-16 and these Kubota OEM numbers?

A: PSVL-54CG-16 is the official model designation of KYB original pump, while the four serial numbers are exclusive OEM part numbers assigned by Kubota for this complete main pump assembly.
Q: Are separate repair spare parts available for this hydraulic pump?

A: Matching full overhaul seal kits, piston shoe assemblies, valve plates, swash plates and independent pilot gear pump spare parts are all available for partial overhaul and single component replacement work.
