Name: HItachi ZX670LC-5G ZX670LCH-5G ZX670LCR-5G ZX870-5G ZX870LC-5G Main Hydraulic Pump HPK300AS-14KB YB60000246 For Excavator Parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: ZX670LC-5G ZX670LCH-5G ZX670LCR-5G ZX870-5G ZX870LC-5G
Price: 475.00 USD
Availability: InStock

Home > Products > Hydraulic Pump Excavator Parts >

HItachi ZX670LC-5G ZX670LCH-5G ZX670LCR-5G ZX870-5G ZX870LC-5G Main Hydraulic Pump HPK300AS-14KB YB60000246 For Excavator Parts

Place of Origin:

Japan

Brand Name:

Belparts

Certification:

ISO9001 / 2006/42/EC

Model Number:

ZX670LC-5G ZX670LCH-5G ZX670LCR-5G ZX870-5G ZX870LC-5G

Request A Quote

Product Details

Parts Number:

YB60000246

Type:

HPK300AS

Application:

Mini Excavator

Warranty:

12 Months

Quality:

Genuine Refurbished

Model:

ZX670LC-5G ZX670LCH-5G ZX670LCR-5G ZX870-5G ZX870LC-5G

Part Name:

Hydraulic Piston Pump

Shipment:

Sea / Air / Express DHL FEDEX UPS

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiated price

Packaging Details

Wooden Case Packing

Delivery Time

1~5 days

Payment Terms

T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union,MoneyGram

Supply Ability

100 PCS / Months

Excavator Parts PVD-1B-24P-6G3 SWE25UF Hydraulic Pump

Get Best Price

Excavator Hydraulic Pump Robex R140W-9 A6VM107 Main Pump 31Q4-41010 For Hyundai

Get Best Price

Video

Belparts Excavator Main Pump ZAXIS650LC-3 ZAXIS670LCH-3 Hydraulic Pump 9254122 4635645 4641835

Get Best Price

Kubota KX175-5 Main Hydraulic Pump RD706-61113 OEM PSVL-84 Original KYB B0610-84008 For Mini Excavator Repair Parts

Get Best Price

+86 19924616345

ron@belparts-china.com

86-020-32384870

Contact Now

Product Description

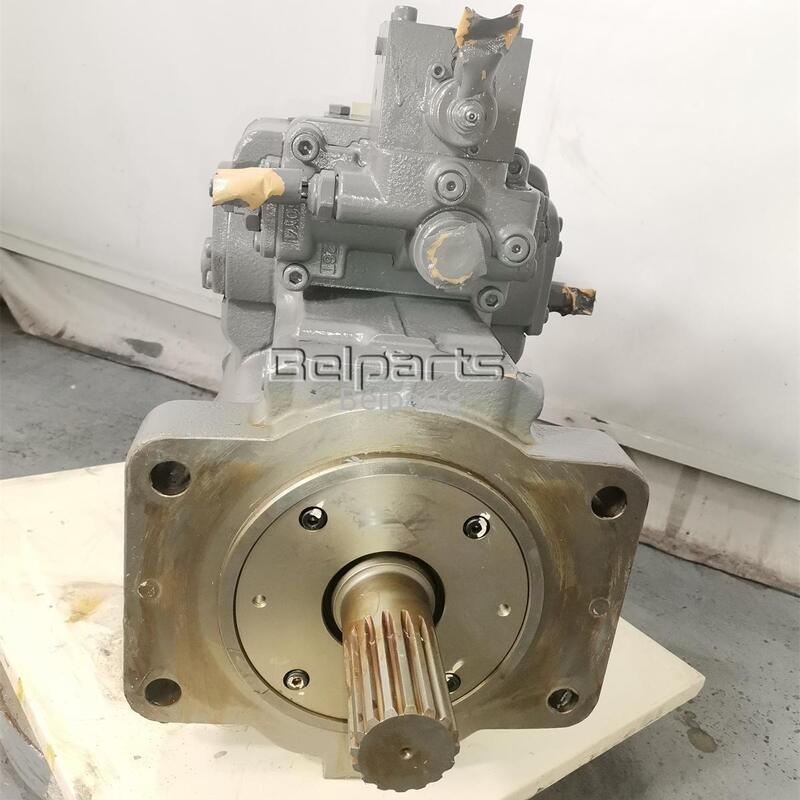

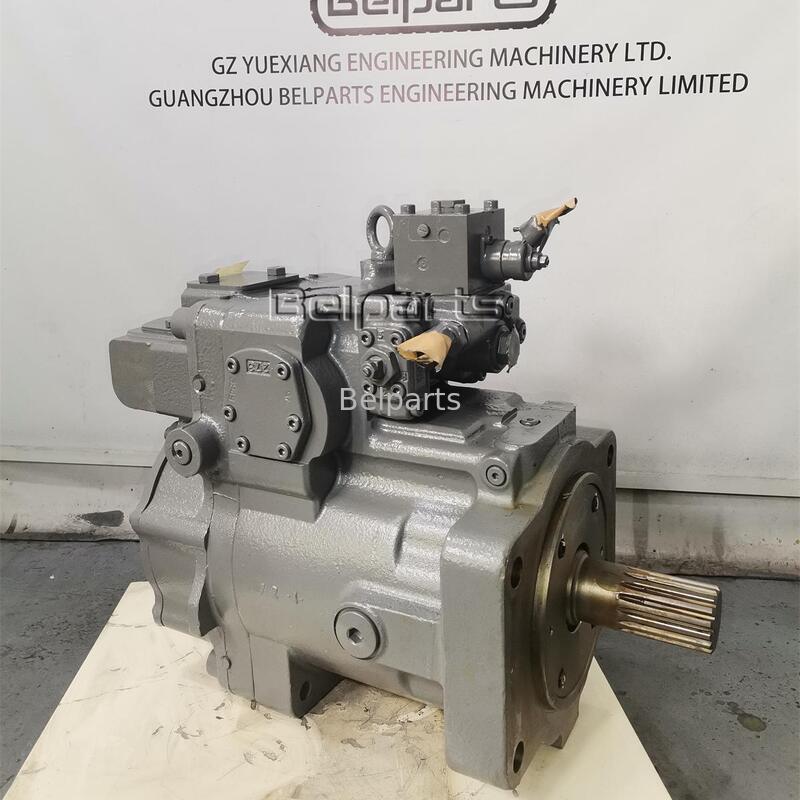

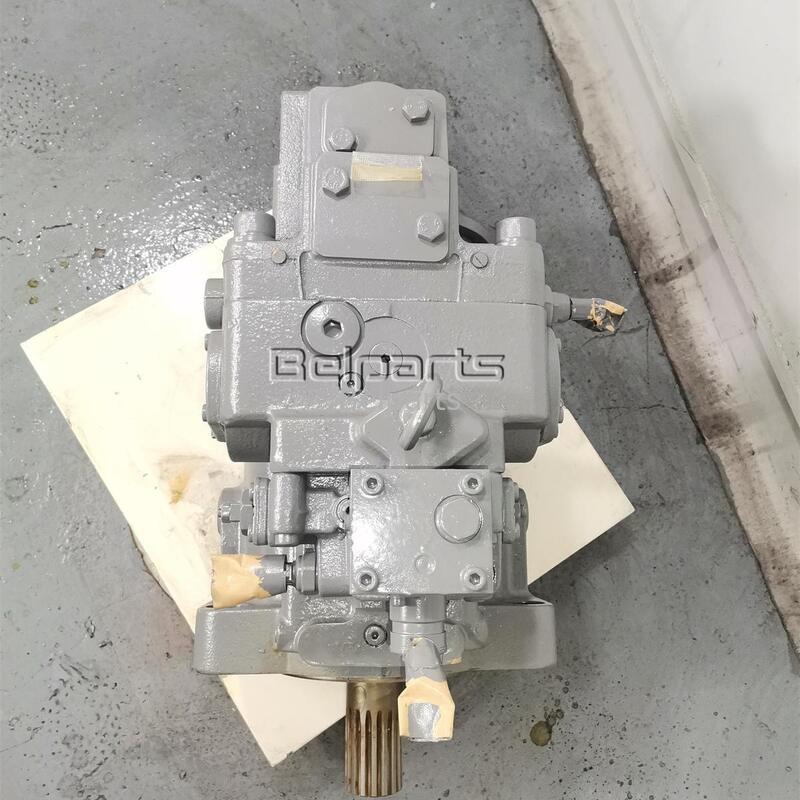

Hitachi ZX670LC-5G / ZX670LCH-5G / ZX670LCR-5G / ZX870-5G / ZX870LC-5G Main Hydraulic Pump

HPK300AS | OEM YB60000246 | Cross PN: 9298855, 9195239 | New Aftermarket | BELPARTS Mining Excavator Parts

1. Basic Information

Part Name: Tandem Variable Displacement Axial Piston Main Pump with Integrated Pilot Pump, HPK300AS series
Official OEM Part Numbers:
Primary PN: YB60000246
Interchange PN: 9298855, 9195239, YB60000244
Pump Model: HPK300AS
Compatible Large Excavator Models:
Hitachi ZX670LC-5G, ZX670LCH-5G, ZX670LCR-5G, ZX870-5G, ZX870LC-5G
Also fits ZX870LCH-5G, ZX870LCR-5G
Machine Class: 67–87 ton heavy mining & quarry excavator
Available Condition: Genuine Original New / Factory Remanufactured / Premium Aftermarket New
Warranty: 12 months for original & reman pumps; 6–12 months for aftermarket assemblies
Net Weight: Approx. 410 kg
Stock Status: In stock, ships within 3–7 working days

2. Key Features

Original Hitachi HPK300AS design, perfectly matched to HIOS IIIB hydraulic system & Isuzu 6WG1 engine power curve for -5G generation machines
Equipped with electronic proportional displacement control, load sensing + constant horsepower dual regulation to cut fuel consumption and prevent engine stall under heavy mining loads
Built-in pilot gear pump supplies stable control pressure for boom, arm, bucket, travel and swing hydraulic circuits
Direct bolt-on replacement, identical mounting flange, port layout and spline drive shaft, no machining or modification required during installation
Thick high-strength nodular cast iron housing, reinforced cylinder block, hardened piston & valve plate for long-cycle harsh mining operation
Every pump undergoes full pressure calibration, internal leakage inspection and overall performance bench test; ISO9001 & CE certified

3. Technical Specifications (HPK300AS)

Pump Configuration: Twin variable axial piston pump assembly
Single Side Displacement: 300 cm³/rev
Rated Implement Pressure: 31.9 MPa (319 bar)
Max Travel Relief Pressure: 34.3 MPa (343 bar)
Total Theoretical Flow: Approx. 886 L/min @ 1800 RPM
Pilot Pump Output: 50 L/min, working pressure 3.9 MPa
Rotation Direction: Counterclockwise (viewed from engine input side)
Drive Shaft: Heavy-duty multi-tooth internal spline matched OEM dimension

4. Compatibility & Cross Reference List

Direct Fit Models:
ZX670LC-5G, ZX670LCH-5G, ZX670LCR-5G, ZX870-5G, ZX870LC-5G
Interchangeable Part Numbers:
YB60000246, 9298855, 9195239, YB60000244
Extended Compatibility: ZX690-5A, ZX690-5B, ZX890-5A, ZX890-5B series excavators

5. BELPARTS Competitive Advantages

Over 13 years specialized in hydraulic pumps for 60–90 ton Hitachi large mining excavators
Three quality grades optional: genuine original unit, professionally remanufactured pump, cost-effective aftermarket replacement
Rigorous pre-delivery QC procedure: full pressure testing, internal leakage detection and efficiency verification
Adequate inventory stored in Guangzhou warehouse, flexible sea freight & air freight global shipping solutions
Professional engineering team provides on-site installation troubleshooting and long-term technical after-sales support
Economical cost-saving alternative vs expensive Hitachi genuine OEM spare parts

6. FAQ

Q1: Does this pump fit all listed ZX670-5G and ZX870-5G variants?

A: Yes, YB60000246 / HPK300AS is universal assembly compatible with standard long-carriage, heavy high-lift and reduced-swing chassis configurations.

Q2: What is the relationship between YB60000246, 9298855 and 9195239?

A: They are superseded interchange OEM part numbers for the identical HPK300AS main pump assembly, fully interchangeable for field repair replacement.

Q3: What is your delivery lead time?

A: Products are ready in stock, dispatched within 3–7 working days after order confirmation; global sea & air shipping options available.
