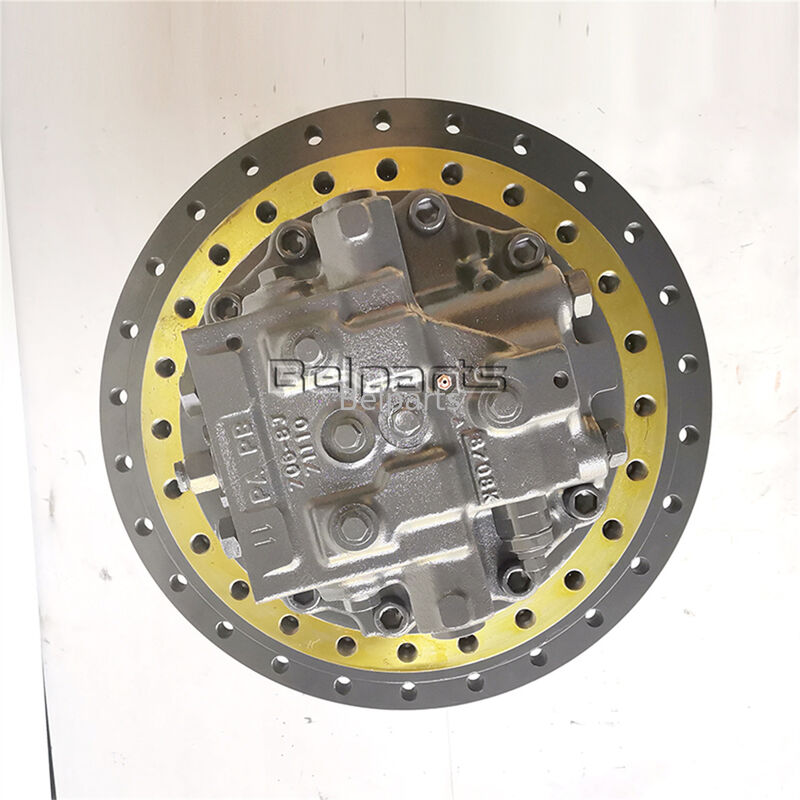

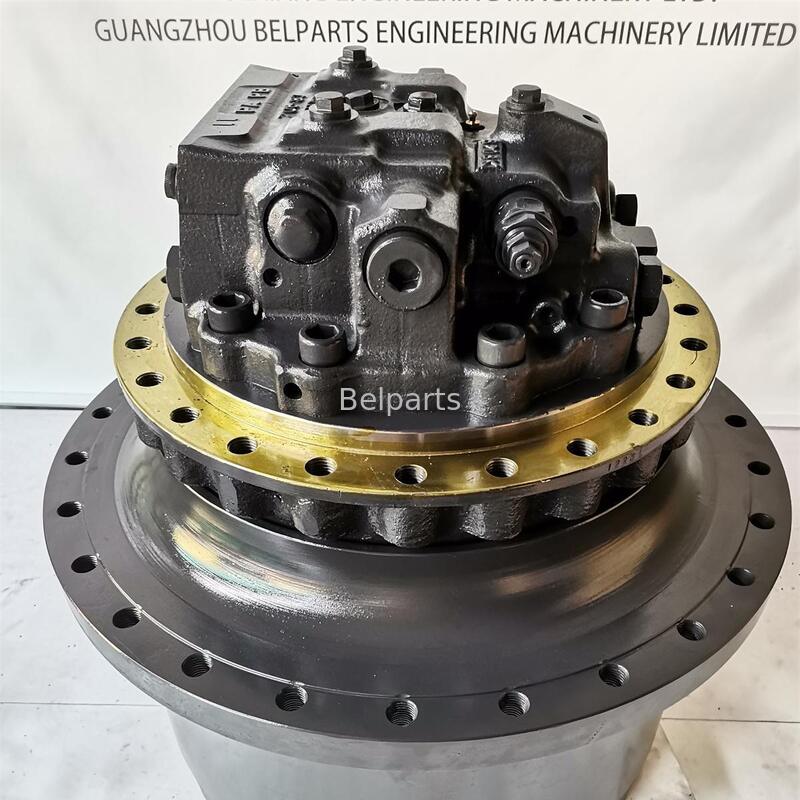

Quality 706-8J-01411 706-8J-01421 Travel Motor for PKOMATSU C390LC-10 PC400-7 PC400LC-7 PC400-8 PC400LC-8 Excavator Part Hydraulic Track Device factory

706-8J-01411 706-8J-01421 Travel Motor for PKOMATSU C390LC-10 PC400-7 PC400LC-7 PC400-8 PC400LC-8 Excavator Part Hydraulic Track Device

Name: 706-8J-01411 706-8J-01421 Travel Motor for PKOMATSU C390LC-10 PC400-7 PC400LC-7 PC400-8 PC400LC-8 Excavator Part Hydraulic Track Device
Brand: BELPARTS MACHINERY LIMITED
SKU: PC390LC-10 PC400-7 PC400LC-7 PC400-8 PC400LC-8
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Certification:2006/42/EC ISO9001

Model Number:PC390LC-10 PC400-7 PC400LC-7 PC400-8 PC400LC-8

Minimum Order Quantity:1 PCS

Price:Negotiation

Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,WEST UNION,PAYPAL

Supply Ability:100 PCS / Months

Product Details

Highlight:

Travel Motor Assy for Komatsu excavator

,

Hydraulic track device motor

,

Komatsu PC400-8 travel motor

Shipment: DHL FEDEX TNT EMS UPS / Ses / Air

Application: Excavator

Warranty: 12 Month

Condition: New

Part Number: 706-8J-01411 706-8J-01421

Model: PC390LC-10 PC400-7 PC400LC-7 PC400-8 PC400LC-8

Quality: Aftermarket High Quality

Part Name: Travel Motor

Product Description

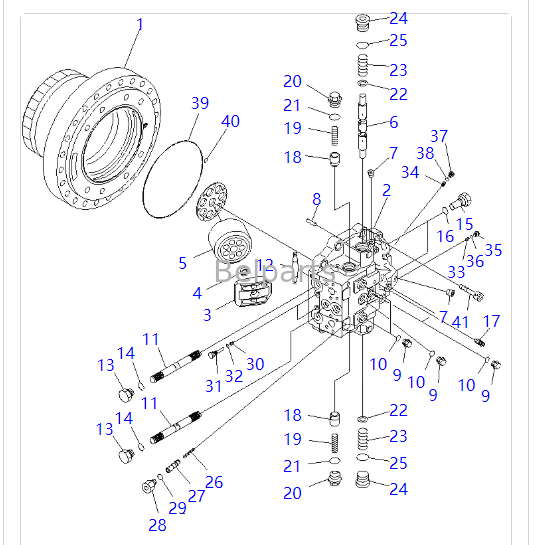

No	Part number	Qty	Part name
0	706-8J-01411	[1]	MOTOR ASS'Y Komatsu China
1	706-8J-42311	[1]	CASE,MOTOR Komatsu China
39	706-8J-00013	[1]	END COVER SUB ASS'Y Komatsu
8	706-86-71310	[1]	PIN,DOWEL Komatsu
9	706-8E-14191	[5]	PLUG Komatsu China
10	07002-11823	[5]	O-RING Komatsu
11	706-8J-71550	[2]	PISTON Komatsu China
12	706-8J-71560	[1]	PIN Komatsu China
13	706-8J-71130	[2]	PLUG Komatsu China
14	07002-12434	[2]	O-RING Komatsu China
15	706-8J-71140	[2]	PLUG Komatsu China
17	20B-27-11210	[1]	BLEEDER Komatsu
18	706-75-74540	[2]	VALVE Komatsu
19	706-75-74550	[2]	SPRING Komatsu
20	706-75-74850	[2]	PLUG Komatsu China
21	07002-13334	[2]	O-RING Komatsu China
22	708-8F-36120	[2]	RING Komatsu
23	706-78-71280	[2]	SPRING Komatsu China
24	706-78-71230	[2]	PLUG Komatsu China
25	07002-13634	[2]	O-RING Komatsu China
26	706-8E-14170	[1]	SPRING Komatsu
27	706-8J-71150	[1]	SPOOL Komatsu
28	706-8J-71160	[1]	PLUG Komatsu
30	706-86-53410	[2]	VALVE Komatsu China
31	706-8J-71170	[2]	PLUG Komatsu China
32	07002-11023	[2]	O-RING Komatsu China
33	708-8E-16180	[1]	VALVE Komatsu
34	706-8J-71181	[1]	VALVE Komatsu China
35	708-8E-16160	[1]	PLUG Komatsu
37	706-8J-71190	[1]	PLUG Komatsu China
38	07002-11223	[1]	O-RING Komatsu China
39	07000-15275	[1]	O-RING Komatsu
40	07000-12012	[1]	O-RING Komatsu China
41	01252-62060	[8]	BOLT Komatsu China

Komatsu 706-8J-01411 / 706-8J-01421 Travel Motor (Motor Only, No Reduction Gearbox)

Hydraulic Track Device Motor Unit | For PC390LC-10, PC400-7, PC400LC-7, PC400-8, PC400LC-8 | BELPARTS Excavator Undercarriage Spare Parts

1. Basic Information

Part Definition: Standalone travel hydraulic motor (motor head only, without planetary reduction gearbox, sold separately for final drive repair replacement)
Official OEM Part Numbers:

Main PN: 706-8J-01411, 706-8J-01421

Cross interchange PN: 706-8J-01020, 706-8L-01030
Compatible Excavator Models (40 Ton Class Heavy Excavator)

Komatsu PC390LC-10

Komatsu PC400-7, PC400LC-7

Komatsu PC400-8, PC400LC-8
Available Conditions: Genuine Original New / Professionally Rebuilt / Premium Aftermarket New
Warranty Policy: 12 months for Genuine & Rebuilt motors; 6–12 months for aftermarket units
Net Weight: Approx. 98 kg
Stock Status: In stock, shipped within 3–7 working days after order confirmation

2. Key Features

Original Komatsu variable displacement piston travel motor design, perfectly matched to hydraulic system of PC400-7/-8 & PC390LC-10 series machines
Built-in two-speed shifting valve, supports high-speed transit mode & low-speed high-torque climbing/mud working mode
Integrated spring-applied hydraulic-release multi-disc parking brake + built-in counterbalance valve, preventing track slipping on slopes and eliminating hydraulic impact during forward/reverse switching
Independent motor head structure, convenient for field maintenance: only replace damaged motor unit while reusing original intact reduction gearbox, greatly cutting repair cost
Exact OEM port layout, mounting bolt pattern, internal spline shaft and valve setting; direct bolt-on replacement with no modification required
Hardened piston, valve plate and cylinder block, high-pressure resistant housing and upgraded sealing assembly, anti-leakage for long-cycle heavy mining & earthmoving operation
Every unit passes full pressure testing, internal leakage inspection, brake function and two-speed shifting calibration before delivery; ISO9001 & CE certified

3. Technical Specifications

Motor Type: Variable Displacement Axial Piston Travel Motor (Motor Head Only)
Max System Relief Pressure: 37.3 MPa (373 bar)
Working Mode: 2-speed automatic/manual shift
Brake Structure: Hydraulic release, spring applied static parking brake
Connection: Matches original two-stage planetary reduction gearbox input spline
Rotation Direction: Standard OEM direction matching machine chassis configuration

4. Compatibility & Cross Reference List

Direct Fit Models

PC390LC-10, PC400-7, PC400LC-7, PC400-8, PC400LC-8

Interchangeable Part Numbers

706-8J-01411, 706-8J-01421, 706-8J-01020, 706-8L-01030

5. BELPARTS Competitive Advantages

Over 13 years specialized in travel motors & final drive assemblies for 39–45 ton Komatsu heavy excavators
Three quality grades optional: genuine Komatsu original motor, fully rebuilt motor with all wear parts renewed, cost-effective high-precision aftermarket replacement
Strict pre-delivery QC: pressure test, leakage check, brake performance and speed shift function verification
Adequate inventory stored in Guangzhou warehouse, flexible sea freight & air freight global shipping solutions
Professional engineering team provides installation guidance, troubleshooting and long-term technical after-sales support
Economical maintenance solution vs purchasing complete whole final drive assembly

6. FAQ

Q1: What is the difference between this item and a complete final drive?

A: This is travel motor head only (without reduction gearbox); complete final drive includes motor + planetary reduction gearbox integrated together. This motor is used for repairing existing gearbox assemblies.

Q2: Are 706-8J-01411 and 706-8J-01421 interchangeable?

A: Yes, they are superseded updated OEM part numbers for identical travel motor unit, fully interchangeable for replacement on all listed excavator models.

Q3: What is the difference between Rebuilt and Genuine New travel motor?

A: Rebuilt motor replaces all worn internal consumable parts (piston, valve plate, friction plates, oil seals), bench-calibrated to OEM performance standard with competitive price; Genuine New is original factory brand-new motor complying with full factory specification.
