208-27-00240 Final Driver for PC400-7 PC400LC-7 PC450-7 PC450LC-7 Excavator Parts Travel Motor with Gearbox Track Reducer

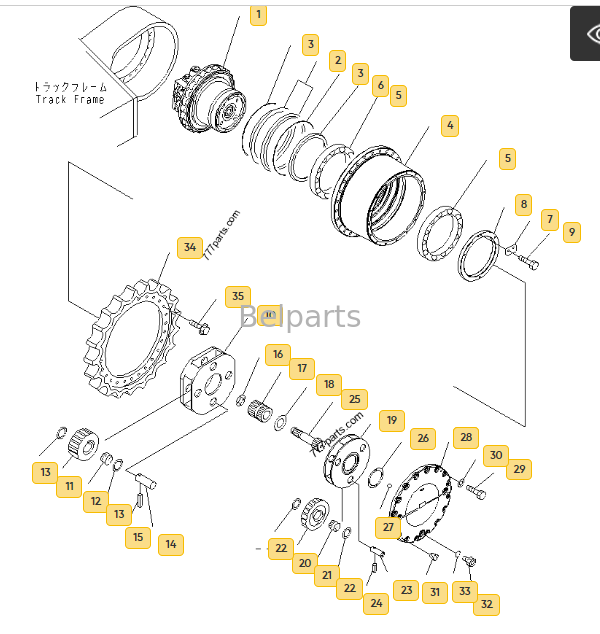

• Part Name: Full Final Drive Assembly (Hydraulic Travel Motor + Planetary Reducer Integrated Track Drive Device)
• Main OEM Part Number: 208-27-00240
• Cross Interchange Part Numbers:

  208-27-00241 (Left Final Drive), 208-27-00242 (Right Final Drive), 208-27-00312
  Matching internal travel motor head: 706-8J-01012, 706-8J-01030, 706-8J-01411, 706-8J-01421

• Compatible Excavator Models:

  Komatsu PC400-7, PC400LC-7
  Komatsu PC450-7, PC450LC-7
  Also fits PC400-7EO, PC400LC-7EO, PC450-7EO, PC450LC-7EO, PC300-7

• Available Quality Options:

  ✅ Genuine Original Factory New
  ✅ Professionally Fully Rebuilt (All wear components replaced + bench calibrated)
  ✅ High Precision Premium Aftermarket New

• Warranty Policy: 12 months for Genuine & Rebuilt units; 6–12 months for aftermarket assemblies
• Approximate Net Weight: 1750 kg
• Stock Status: In stock, shipped out within 3–7 working days after order confirmation

• Manufactured strictly to Komatsu OEM drawings, perfectly matched to original hydraulic system of PC400/PC450-7 series excavators
• Built-in two-speed switching valve: high speed for site relocation, low-speed high-torque mode for climbing slopes, muddy terrain and heavy mining digging
• Integrated spring-applied hydraulic-release multi-disc parking brake plus counterbalance valve, preventing track sliding on inclines and suppressing hydraulic shock during forward/reverse direction switching
• Double planetary reduction structure outputs large driving torque, strong overload resistance, stable performance for long-cycle mining, quarrying and bulk earthmoving harsh working conditions
• Direct bolt-on replacement, identical mounting hole pattern, oil port layout and sprocket hub spline interface; no cutting, welding or machining modification required during field repair
• Forged alloy steel planetary gears with quenching & tempering heat treatment for outstanding wear resistance; thick cast iron housing equipped with heavy-duty floating seal assembly to prevent mud, water and dust intrusion
• Every finished assembly passes full hydraulic pressure testing, internal leakage inspection, brake function test, two-speed shift verification and running-in endurance test before delivery; ISO9001 & CE certified

• Assembly Type: Complete Final Drive (Travel Motor + Two-Stage Planetary Reducer)
• Motor Type: Variable Displacement Axial Piston Travel Motor
• Max System Relief Pressure: 37.3 MPa (373 bar)
• Travel Mode: Switchable high/low two-speed travel
• Brake Structure: Spring-applied static parking brake, hydraulic release
• Reduction Form: Two-stage planetary gear reduction
• Part Note: 208-27-00240 is the supersession general part number covering both left 208-27-00241 and right 208-27-00242 final drives
• Output Interface: OEM standard spline matched to sprocket hub

PC400-7, PC400LC-7, PC450-7, PC450LC-7

208-27-00240, 208-27-00241, 208-27-00242, 208-27-00312

706-8J-01012, 706-8J-01030, 706-8J-01411, 706-8J-01421

PC300-7, PC400-7EO, PC400LC-7EO, PC450-7EO, PC450LC-7EO, PC400-8, PC400LC-8, PC450-8, PC450LC-8

• Over 13 years specialized in final drives and travel motors for 30–50 ton Komatsu heavy mining excavators
• Three quality grades to satisfy different budget and severe working environment demands
• Rigorous incoming & outgoing QC inspection system to guarantee long-term stable service life
• Sufficient inventory stored in Guangzhou warehouse, flexible sea freight & air freight global shipping solutions
• Professional engineering team supplies on-site installation guidance, fault troubleshooting and long-term technical after-sales support
• Integrated one-piece assembly for direct replacement, greatly shortening machine downtime and maintenance cycle

A: 208-27-00240 is the general supersession part number for this final drive model; 208-27-00241 stands for left side final drive, 208-27-00242 stands for right side final drive. Left and right units cannot be installed reversely.

A: Yes. If the planetary reduction gearbox is intact without gear damage or oil leakage, you can replace only the faulty motor head (706-8J series part numbers) to lower maintenance costs.

A: Rebuilt final drive replaces all worn internal consumable parts (piston, valve plate, planetary gears, friction plates, oil seals), fully bench tested to OEM performance standard with cost advantages. Genuine New is original factory brand-new assembly fully compliant with Komatsu factory specifications.

A: Goods are in ready stock, dispatched within 3–7 working days after order confirmation, worldwide sea and air shipping options available.
