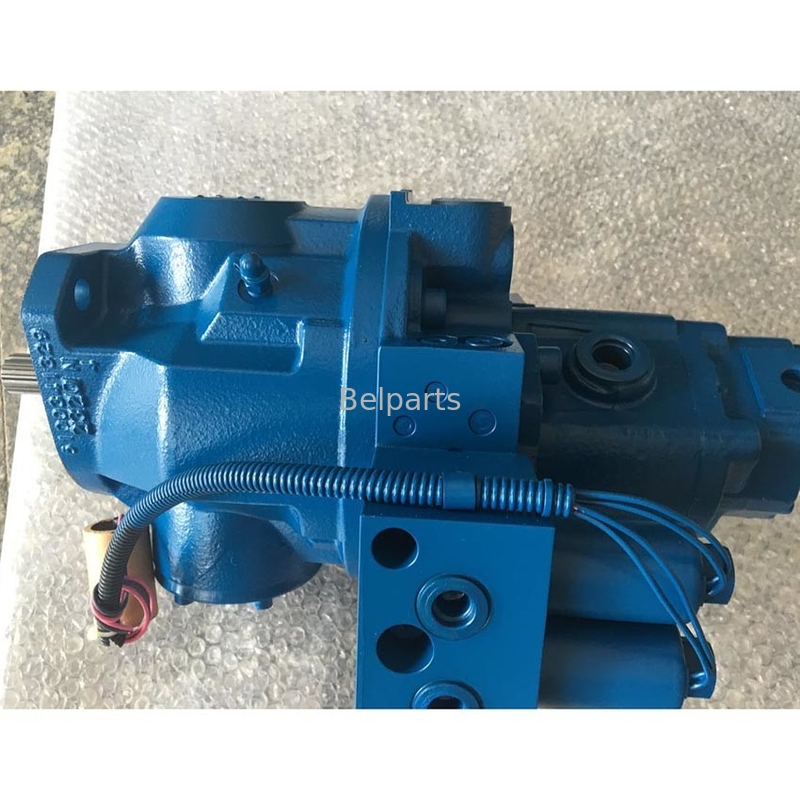

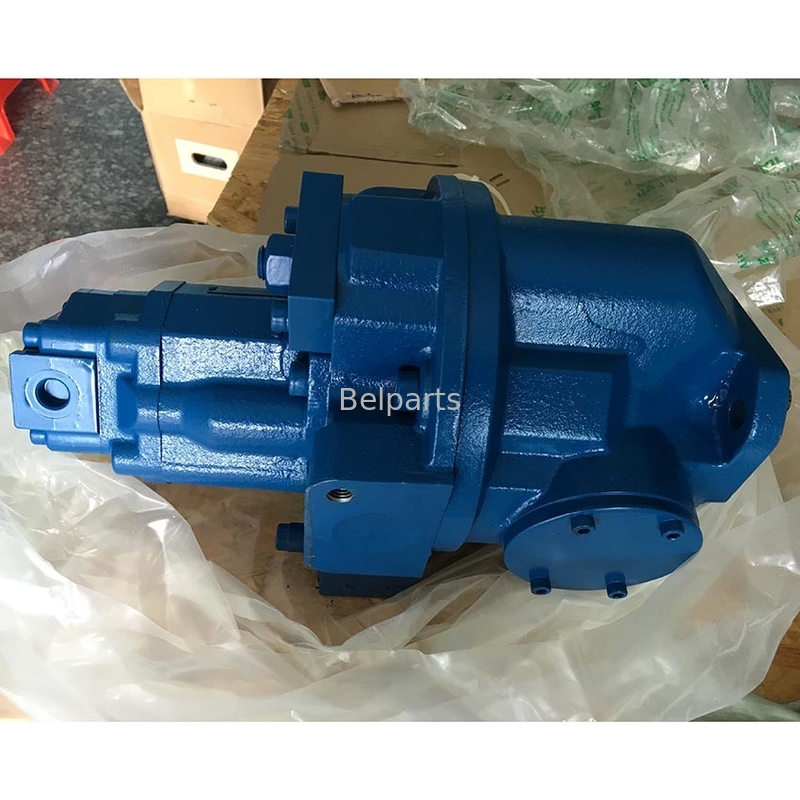

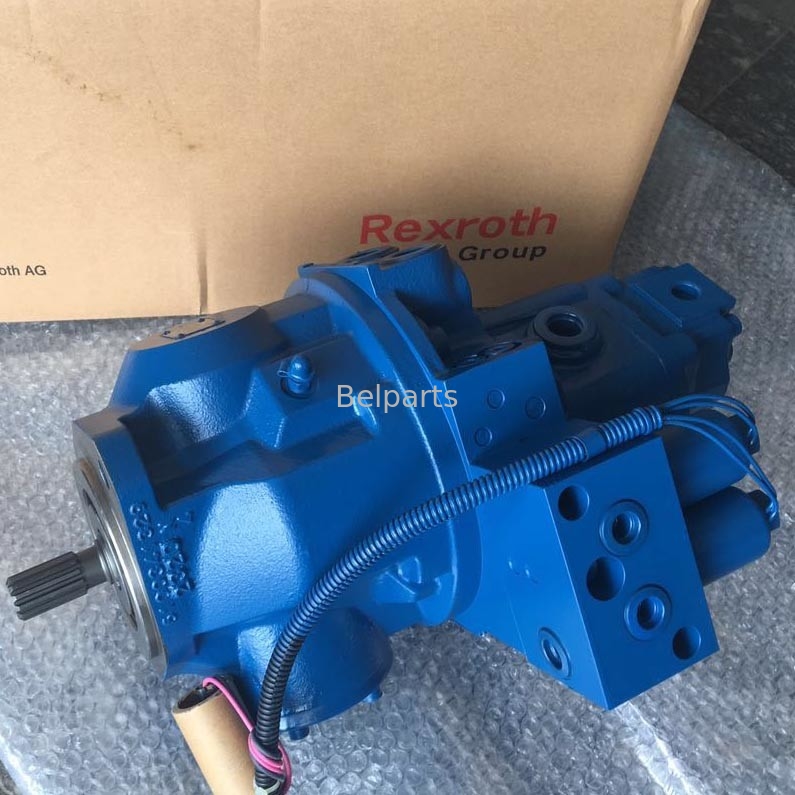

Name: Hyundai R55-7 R60-5 R60-7 31M8-10021 Excavator Hydraulic Pump For AP2D28LV1RS7-856-0
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: R55-7 R55-7A R55-9
Price: 475.00 USD
Availability: InStock

Home > products > Hydraulic Pump Excavator Parts >

Hyundai R55-7 R60-5 R60-7 31M8-10021 Excavator Hydraulic Pump For AP2D28LV1RS7-856-0

R60-7 excavator hydraulic pump

AP2D28LV1RS7-856-0 excavator hydraulic pump

R55-7 excavator hydraulic pump

Place of Origin:

Made in china

Brand Name:

Belparts

Model Number:

R55-7 R55-7A R55-9

Request A Quote

Product Details

Model:

R55-7 R60-5 R60-7

Part Number:

31M8-10021

Weight:

38Kg

Condition:

100% New

Texture:

Steel

Part Name:

Hydraulic Pump/Main Pump

Quality:

High Quality

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiated price

Packaging Details

Wooden case

Delivery Time

1~7 days

Payment Terms

T/T, trade assurance,PayPal

Supply Ability

1000PCS

Construction Machinery Parts E330D Hydraulic Pump 2667954 2478992 TQ For Excavator

Get Best Price

Video

Belparts 369-9655 3699655 Excavator Hydraulic Pump A28VO280 For TQ 390F 374F

Get Best Price

Belparts Excavator Hydraulic Motor Pump 2959663 For TQ 345D 349D 345D Pump Assy In Mining Application

Get Best Price

Multipurpose Belparts Excavator PSVL-54CG KYB Yellow Color Hydraulic Pump For TQ 305 A Must-Have For Mechanical Repair Shops

Get Best Price

+86 13247509480

belparts02@gmail.com

86-020-32384870

Contact Now

Product Description

Hyundai R55-7 R60-5 R60-7 31M8-10021 excavator hydraulic pump for AP2D28LV1RS7-856-0

Product Description

Product name	Excavator Hydraulic pump
Place of Origin:	China(mainland)
Model:	R55-7 R60-5 R60-7
Part number:	31M8-10021
MOQ:	1 PCS
Payment term:	T/T, trade assurance,PayPal
Delivery time:	Within 1~7 days after receiving the payment
Packing:	Standard exporting packing or as required

#	Part No	Part Name	Qty.	Price request
*	31M8-10020	MAIN PUMP STD	1
*	31M8-10010	MAIN PUMP LOW NOISE	1
N*-1	XKAH-00783	MAIN PUMP UNIT SEE 4020	1
1	XKAH-00653	SHAFT-DRIVE	1
2	XKAH-00652	COVER-SEAL	1
3	XKAH-00651	BEARING-BALL	1
4	XKAH-00650	RING-SNAP	1
5	XKAH-00649	RING-SNAP	1
K6	XKAH-00648	SEAL-OIL	1
K7	XKAH-00647	O-RING	1
8	XKAH-00646	RING-SNAP	1
9	XKAH-00645	PLATE-SWASH	1
10	XKAH-00644	PLATE	1
11	XKAH-00643	SPACER-BEARING	1
12	XKAH-00642	BEARING-ROLLER	2
13	XKAH-00641	BOLT-SOCKET	4
K14	XKAH-00640	O-RING	1
15	XKAH-00639	PIVOT	1
16	XKAH-00655	BLOCK-CYLINDER STD	1
16	XKAH-00918	BLOCK-CYLINDER LOW NOISE	1
17	XKAH-00656	BUSH-SPHERICAL	1
18	XKAH-00657	PLATE-PUSH STD	1
18	XKAH-00919	PLATE-PUSH LOW NOISE	1
19	XKAH-00658	PLATE-SHOE	1
20	XKAH-00659	SPRING	1
21	XKAH-00660	PIN-PARALLEL	3
22	XKAH-00661	SEAT-SPRING	2
23	XKAH-00662	RING-SNAP	1
24	XKAH-00864	PISTON SUB ASSY STD	1
24	XKAH-00928	PISTON SUB ASSY LOW NOISE	1
26	XKAH-00673	CASING	1
27	XKAH-00675	SEAT-SPRING(1)	1
28	XKAH-00676	SEAT-SPRING(2)	1
29	XKAH-00677	COVER-SPRING	1
30	XKAH-00678	SCREW-ADJUSTING	1
31	XKAH-00679	SPRING	1
32	XKAH-00680	SPRING	1
K33	XKAH-00681	O-RING	1
34	XKAH-00682	BOLT-SOCKET	2
35	XKAH-00683	NUT-HEX	1
36	XKAH-00684	SHIM(0.3T)	1
37	XKAH-00685	SHIM(0.5T)	1
38	XKAH-00686	SHIM(1.0T)	1
39	XKAH-00687	SHIM(2.0T)	1
73	XKAH-00716	AIR BREATHER	1
74	XKAH-00717	NAME PLATE STD	1
74	XKAH-00924	NAME PLATE LOW NOISE	1
75	XKAH-00116	SCREW-RIVET	2
K	XKAH-00824	SEAL KIT SEE ILLUST	1
*-2	@	FUEL INJECTION PIPE & NOZZLE 4030	1

List of spare parts

#	Part No	Part Name	Qty.
*	31M8-10021	MAIN PUMP STD	1
*	31M8-10011	MAIN PUMP LOW NOISE	1
1	XJDD-00786	SHAFT ASSY	1
1-1	XJDD-00796	SHAFT	1
1-2	XJDD-00797	SEALCASE	1
1-3	XJDD-00798	BEARING	1
1-6	XJDD-00799	RETAINING RING(C TYPE)	1
1-8	XJDD-00800	OIL SEAL	1
1-9	XJDD-00801	O-RING	1
1-10	XJDD-00802	RETAINING RING(C TYPE)	1
2	XJDD-00787	HANGER ASSY	1
2-1	XJDD-00803	HANGER	1
2-1-1	XJDD-01023	HANGER	1
2-1-2	XJDD-01024	BUSH	1
2-2	XJDD-00804	COVER	1
2-3	XJDD-00805	SPACER	1
2-4	XJDD-00806	BEARING	2
2-5	XJDD-00807	SCREW-HEX SO HD CAP	4
2-6	XJDD-00808	O-RING	1
3	XJDD-00865	ROTARY GROUP STD	1
3	XJDD-00788	ROTARY GROUP LOW NOISE	1
3-1	XJDD-00809	PISTON ASSY	10
3-2	XJDD-00810	BLOCK-CYLINDER	1
3-4	XJDD-00866	RETAINER STD	1
3-4	XJDD-00811	RETAINER LOW NOISE	1
3-5	XJDD-00812	PLATE	1
3-6	XJDD-00813	GUIDE	1
3-7	XJDD-00814	SPRING	1
3-8	XJDD-00044	PIN-PARALLEL	3
3-9	XJDD-00815	SPRING SEAT	2
3-10	XJDD-00816	RETAINING RING(C TYPE)	1
5	XJDD-01025	SPRING SEAT ASSY STD	1
5	XJDD-00867	SPRING SEAT ASSY LOW NOISE	1
5-1	XJDD-00828	SPRING SEAT	1
5-2	XJDD-01026	SPACER-SPRING STD	1
5-2	XJDD-00868	SPRING SEAT LOW NOISE	1
5-3	XJDD-00830	COVER	1
5-4	XJDD-00731	SCREW-ADJUSTING	1
5-7	XJDD-00831	O-RING	1
5-8	XJDD-00733	SCREW-HEX S/HD CAP	2
5-9	XJDD-00734	NUT-HEX	1
5-34	XJDD-00832	SHIM	2
5-44	XJDD-00833	SHIM	2
5-54	XJDD-00834	SHIM	2
5-64	XJDD-00835	SHIM	2
8	XJDD-00793	HOUSING	1
11	XJDD-00010	VALVE-AIR VENT	1
13	XJDD-00884	SPRING	1
14	XJDD-00885	SPRING	1

Product Features:

High-Efficiency Design: Utilizes advanced hydraulic design to ensure high-efficiency output under high load and prolonged working conditions, reducing energy loss and improving fuel economy.
Strong Durability: Made with high-strength alloy materials and precision machining processes, ensuring long service life and low failure rates even in harsh working environments.
Low Noise Operation: Optimized internal structure and shock-absorbing design significantly reduce operational noise, providing a more comfortable operating environment.
Easy Maintenance: Modular design makes maintenance and part replacement more straightforward, reducing downtime and improving work efficiency.
Wide Compatibility: Suitable for various brands and models of excavators, easy to install without complex modifications.
