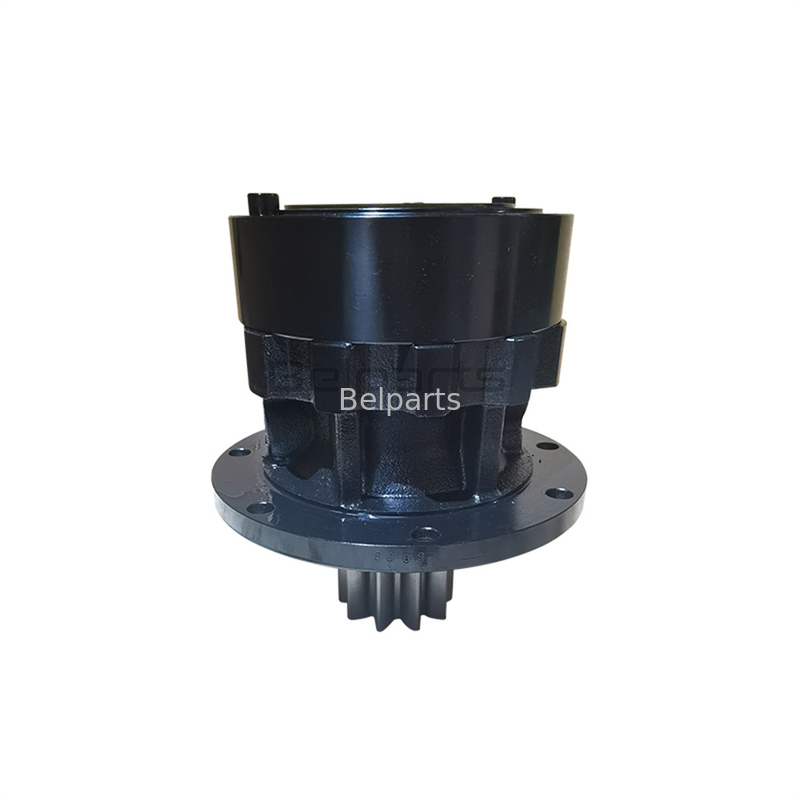

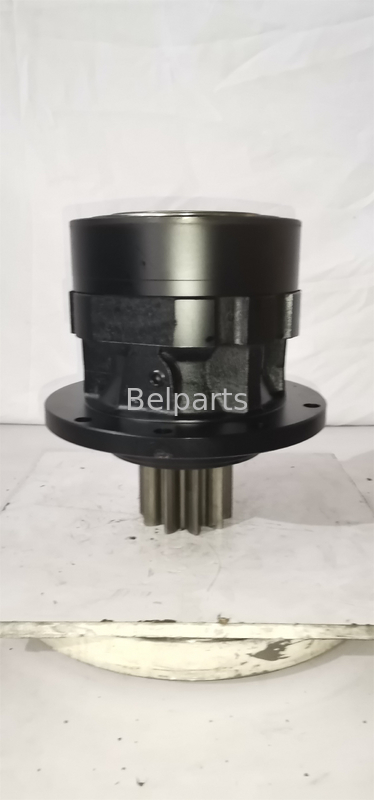

Name: Excavator SK75-8 SK60-5 SK60-6 SK75UR Slewing Gearbox YR32W00002F1 Swing Drive
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK75-8 SK60-5 SK60-6
Price: 475.00 USD
Availability: InStock

Home > products > Excavator Swing Gearbox >

Excavator SK75-8 SK60-5 SK60-6 SK75UR Slewing Gearbox YR32W00002F1 Swing Drive

SK60-6 Excavator Swing Gearbox

SK75UR Excavator Swing Gearbox

YR32W00002F1 Excavator Swing Gearbox

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

SK75-8 SK60-5 SK60-6

Request A Quote

Product Details

Model:

SK75-8 SK60-5 SK60-6

Part Number:

YR32W00002F1

Brand Name:

Kobelco

Material:

Steel

Price:

Negotiable Price

MOQ:

1PC

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable price

Packaging Details

Wooden packing

Delivery Time

1-7days

Payment Terms

T/T, Paypal and Trade Assurance

Supply Ability

1000pieces

Excavator R480-9 390B-12100 Swing Drive Gearbox For Hyundai Hydraulic Reduction

Get Best Price

Video

Excavator ZX120-3 Swing Device ZX120 Slewing Gearbox 9277217

Get Best Price

Video

Excavator 9277217 hydraulic swing gearbox ZX120-3 swing device

Get Best Price

Video

Excavator E330D swing reduction E336D excavator 2042679 swing gearbox

Get Best Price

+86 13247509480

belparts02@gmail.com

86-020-32384870

Contact Now

Product Description

Excavator SK75-8 SK60-5 SK60-6 SK75UR Slewing Gearbox YR32W00002F1 Swing Drive

Appliion	Excavator
Part name	Belparts swing gearbox
Part number	YR32W00002F1
Model	SK75-8 SK60-5 SK60-6 SK75UR
MOQ	1PC
Payment term	T/T, Paypal, Trade assurance, or as required
Delivery	2 days after the payment received
Shipment	by sea, by air, by express, or as required

Main Business Model

DH50-7, DH55D, DH60-7, DH80, DH130, DH150, DH150W-9, DH215-5, DH200-5, DH150LC-7, DH215-7, DH220-5, DH220-7, DH220-9, DH220-10, DH225-9, DH258, DH258LC-7, DH280, DH290B, DH300-5, DH300-7, DH320, DH360, DH370, DH500, DX300

R60-7, R80, R130, R140, R150-7, R150-9, R1107-7, R160-7, R210, R220, R220-7, R215-7, R220-5, R225-7, R225-9T, R225lc-7, R290, R350-7,R110-9, R215-9, R275LC-9, R305, R305-7, R320, R335-7,R360, R370, R375, R375-7H, R455, R460, R485-7

EC130, EC140B, EC210B, EC210C, EC235C, EC240B, EC290, EC290B, EC290C, EC360B, EC460B, EC460C, EC480D

E305, E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B

PC35,PC40,PC45, PC50, PC55, PC60,PC60-6, PC70, PC75, PC78, PC80, PC90, PC100, PC110, PC120, PC120-7, PC130, PC150, PC160, PC180, PC200,PC200-6, PC200-7,PC200-8, PC210-8, PC220-6,PC220-7,PC210, PC220, PC230, PC240,PC240-8, PC270, PC300, PC360,PC360-7, PC350, PC400, PC450, PC650, PC750, PC1250 D31, D50, D65, D85, D155, D275, D375, D475

EX200-2, EX220-2, EX120-5, EX200-5, EX220-5, EX400-5, ZX200-3, ZX210-3, ZX240-3, ZX270-3, ZX330-3, ZX360-3, ZX110, ZX120, ZX200-6,ZX200-3G,ZX200-5G,ZX330-3G,ZX350-5G

SK200-3, SK200-5, SK135rs, SK70rs,SK60,SK120-5, SK200-8, SK250-8, SK260-8, SK130-8, SK200-6e, SK210-6e, SK160

HD80R, HD820-5, HD1023, HD1430, HD700-7,HD1430-7, HD1250-7, HD450-7

SH120A2/A3,SH130, SH200A2/A3, SH210A5, SH240A3, SH360A5

KX155, KX135, KX161-3

Parts on group

Pos.	Part No	Qty	Parts name	Comments
. .	24100J11943F1	[1]	HYDRAULIC MOTOR	KOB Superseded by part number: 24100J11943F2
1.	2401N559	[1]	FINGER ASSY.	KOB
2.	2418T8471	[1]	SLEEVE	KOB
3.	2418N1914	[1]	RETAINER	KOB
4.	2414J1304	[1]	HOUSING	KOB
5.	R25P0046D1	[1]	ROLLER BEARING	KOB
6.	25Z627D9	[1]	BEARING	KOB ROLLER
7.	2413N460	[1]	DIFF. SPIDER	KOB SPIDER
8.	2413N459F1	[1]	SPIDER	KOB
9.	2401N476	[1]	RING GEAR	KOB
10.	2425Z543	[3]	NEEDLE BEARING	KOB
11.	ZS23C10110	[8]	SCREW,Hex Socket Head, M10 x 110mm	KOB M10x1.50x110mm
12.	2401P1319	[1]	SUN GEAR	KOB
13.	2425Z544	[4]	NEEDLE BEARING	KOB
14.	2401P1320	[3]	PINION	KOB
15.	2401P1322	[4]	PINION	KOB
16.	ZD11G07000	[1]	O-RING,69.40mm ID x 75.60mm OD x 3.10mm	KOB ID 69.40 ± 0.61 x OD 75mm
17.	ZS23C08025	[8]	SCREW,Hex Socket Head, M8 x 25mm	KOB M08x1.25x25mm
18.	ZD21T10500	[1]	OIL SEAL	KOB Superseded by part number: 2418R7D6
19.	2418T8472	[1]	SPACER	KOB
20.	2418T8473	[2]	SPACER	KOB
21.	2401P1321	[1]	SUN GEAR	KOB
22.	2418T20860	[3]	LOCKING RING	KOB
23.	2418T20857	[6]	THRUST WASHER	KOB
24.	ZR16X05500	[1]	RING	KOB SNAP
25.	ZP26D08016	[4]	ROLL PIN	KOB SPRING
26.	ZS83C16018	[2]	SCREW	KOB M16x2.0x18mm
27.	2418T20856	[8]	THRUST WASHER	KOB
28.	2410T359	[4]	SHAFT	KOB
29.	2441U834P1	[1]	MOTOR
29-1.	2436U1431F1	[1]	CONTROL VALVE	KOB Superseded by part number: 2436U1431F5
29-2.	2441U814F1	[1]	HYDRAULIC MOTOR	KOB SEE(C.P.M)
29-3.	2436U1283F1	[1]	VALVE PRESSURE RELIE	KOB BREAKE
29-4.	ZS23C12135	[6]	SCREW,Hex Socket Head, M12 x 135mm	KOB M12x1.75x135mm
29-5.	ZD12G03500	[2]	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	KOB ID 34.40 ± 0.33 x OD 40mm
30.	2420T6698D2	[1]	PIPE	KOB
31.	ZE82T12000	[1]	PLUG	KOB 3/4" PT
32.	ZR16X03000	[1]	SNAP RING	KOB SNAP
33.	ZG31U12000	[1]	ELBOW	KOB 90°
. .	24010P3F16	[1]	KIT, SHAFT CONSISTS OF REF 28	KIT, SHAFT CONSISTS OF REF 28

Construction & Key Components

The swing gearbox consists of several essential parts:

(A) Hydraulic Motor

Converts hydraulic energy into mechanical rotation.
Common types: Axial piston motors, gerotor motors.

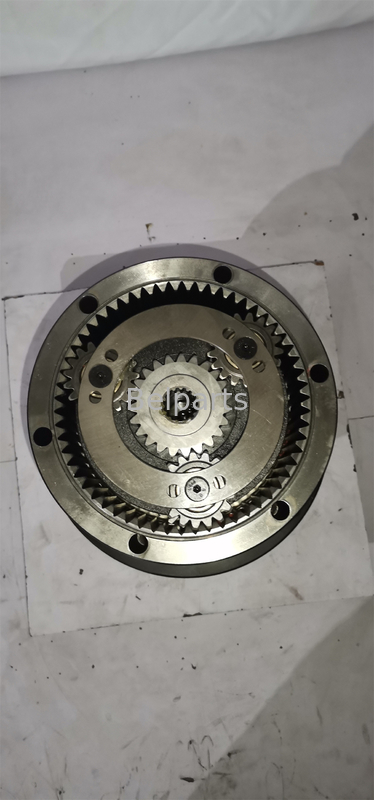

(B) Planetary Gear System

Sun gear: Driven by the motor.
Planet gears: Rotate around the sun gear, mounted on a carrier.
Ring gear: Stationary or rotating, depending on design.
Provides high torque output while maintaining compact size.

(C) Slewing Bearing (Swing Ring)

Large-diameter ball or roller bearing that supports the excavator’s rotation.
Can be internal gear type (common in modern excavators) or external gear type.

(D) Brake System

Hydraulic disc brake (common in modern excavators).
Mechanical brake (used in older models).
Prevents free rotation when the machine is idle.

(E) Housing & Seals

Cast iron or steel housing for durability.
Oil seals and gaskets prevent leakage and contamination.
